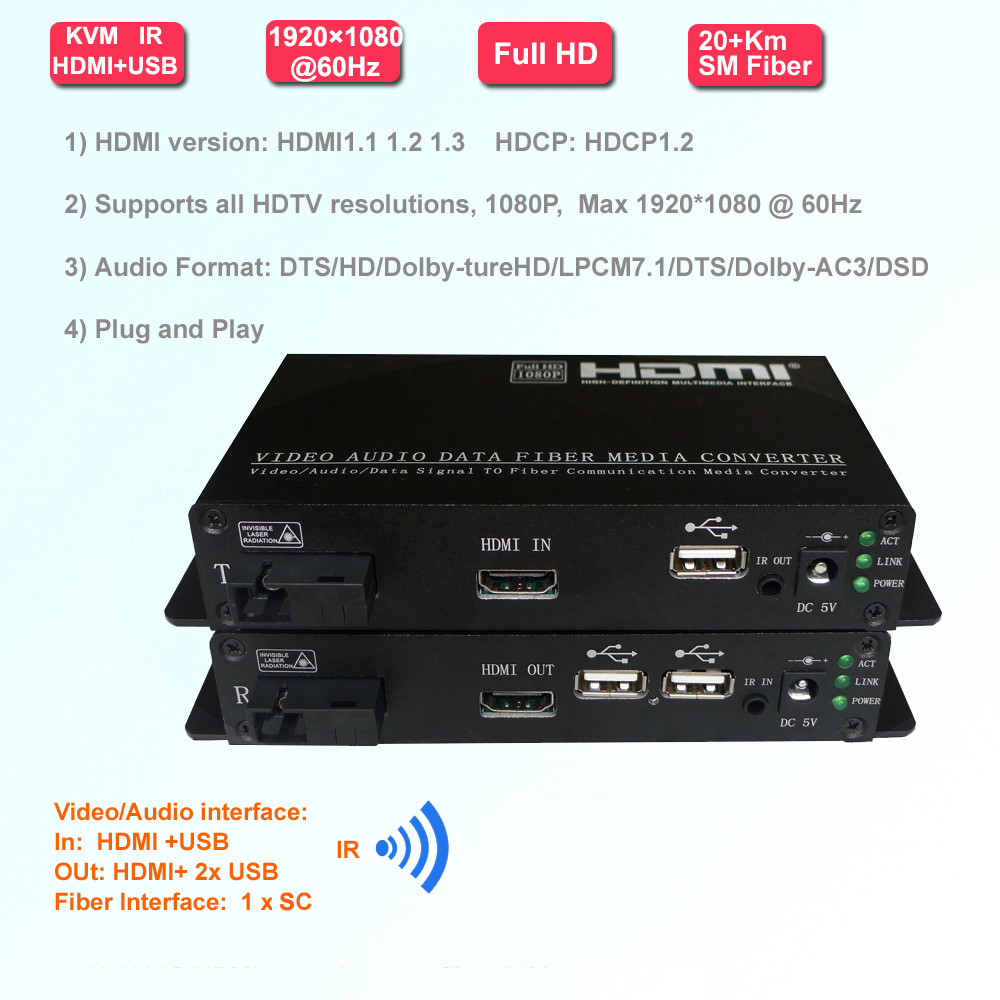

BY-KVM-313 includes a transmitter and a receiver, which can extend 1080P HDMI & USB(keyboard or mouse) and IR signal to a remote location over 1 or 2 fiber cable. The device supports HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz
Features:
1. HDMI Supports 1920×1080@60Hz
2. Max extension distance 2 Kilometers(MM fiber)/20 Kilometers(SM fiber).
3. Single Bi-directional fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4. Support HDMI/DVI interface; Support USB(keyboard or mouse) and IR signal
Application:
a). Remote mornioring, traffic management
b). Broadcast Studio Camera Feeds
c). Long-Haul signal Transport
d). Tv station/video conference
e). Lecture Hall Projector Connectivity
f). Medical/Surgical Room Broadcast
g). Small corporate campus video links
h). Building to Building video conference calling
Specifications:
Video:
I/O connector: HDMI / DVI
HDMI version: HDMI1.1 1.2 1.3
HDCP: HDCP1.2
HDMI resolution: 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format: 24bit/deep color 30bit/deep color 36bit
Audio format: DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS: 0.5-1.5Vp-p(TTL)
DDC: 5Vp-p(TTL)
Input cable length: ≤20m AWG26 HDMI 1.3 standard cable
Output cable length: ≤20m AWG26 HDMI 1.3 standard cable
Optical:
Connector: SC (default), FC/ST (optional)
Wavelength: 1310nm laser
Physical:
Size (L× W ×H): 157mmx81mmx29mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5~12V DC
power consumption: 3.5W at Tx side, 3.5W at Rx side
Environment:
Working temperature: -20℃-70℃
Storage temperature: -40-85℃
Humidity: 0-95% (non-condensing)
IR（Infrared remote control:
Frequency: 38KHz
Wavelength: 940nm
Connector at Tx unit: 3.5mmUnbalanced stereo audio block， 2PIN
Connector at Rx unit: 3.5mmUnbalanced stereo audio block， 3PIN
USB interfaces:
TX: 1，connect to DVR / PC (personal computer)
RX: 2, connect to Cable keyboard or mouse
Diagram:
