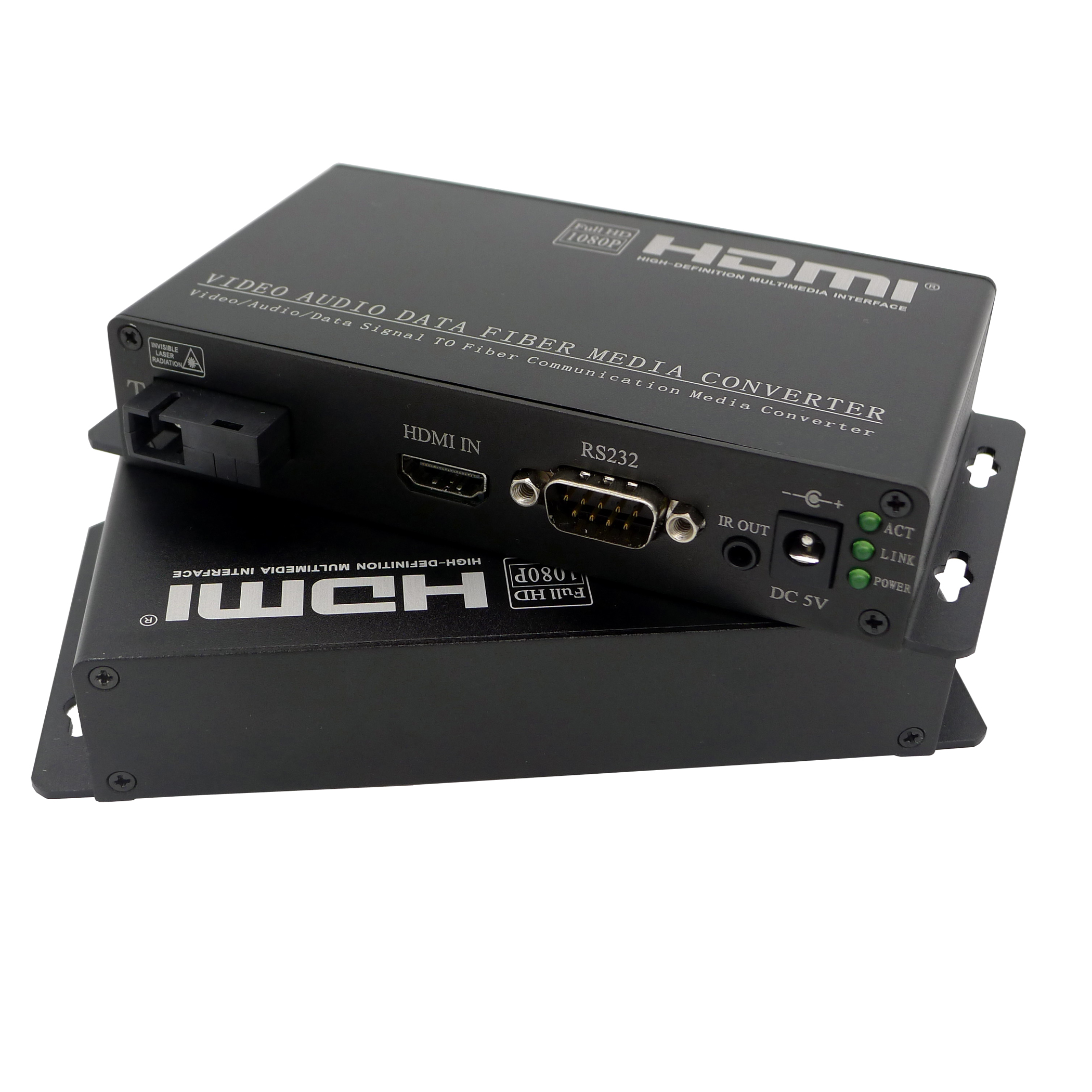

BY-HDMI-312 includes a transmitter and a receiver. The cascaded mode between each node only through the 1 optical fiber connection, reduce the complexity of the proposal, to reduce the difficulty of construction, unlimited number of nodes cascade. BY-HDMI-312 supports HDMI video and audio transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz
Features:
1. Ports(Interfaces): HDMI, RS232 and IR
2. Support Max Resolution 1920×1080@60Hz.
3. Extension distance: 2 Kilometers(Multimode fiber),10 Kilometers (Singlemode fiber)
4. Single Bi-directional fiber transmission, pure hardware design, no driver needed, compatible with all operation systems.
5. be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Specifications:
Video:
I/O connector:HDMI
HDMI version:HDMI1.1 1.2 1.3
HDCP:HDCP1.2
HDMI resolution:1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format:24bit/deep color 30bit/deep color 36bit
Audio format:DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS:0.5-1.5Vp-p(TTL)
DDC:5Vp-p(TTL)
Input cable length:≤20m AWG26 HDMI 1.3 standard cable
Output cable length:≤20m AWG26 HDMI 1.3 standard cable
Optical:
Connector:1 x SC(default), FC/ST (optional)
Wave length:1310nm
Physical:
Size (L× W ×H):157mmx81mmx29mm
Case:Aluminum
N.W.:0.7Kg
Power:
Voltage:5~12V DC
sender power consumption:3W
receiver power consumption:3W
Diagram:
