Description:

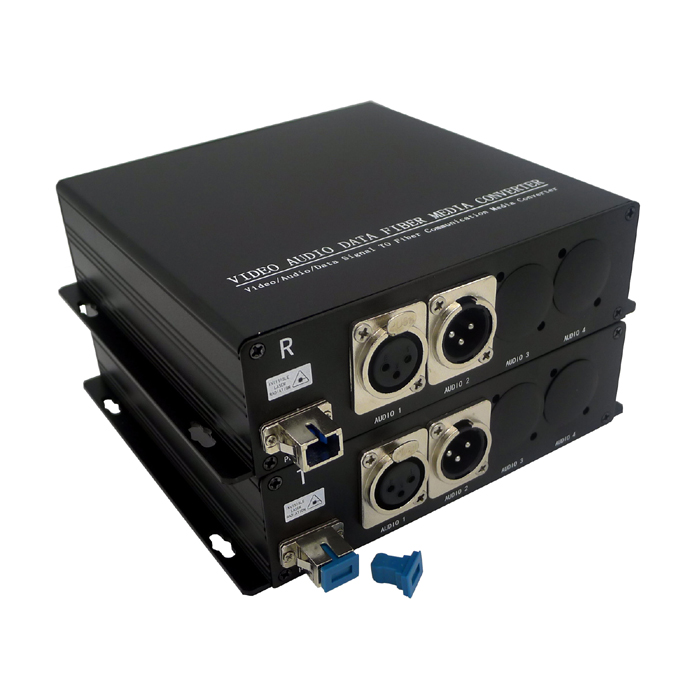

BY-XLR-351 is 1 Ch Bi-directional (2 ways) Balanced Audio Fiber Extender to 20 Kilometers 1 SM Fiber or 500 Meters 1 MM Fiber, Broadcast Quality Balanced Audio (3 Pin XLR) Fiber Extender supports 16-Bit digitally Encoded Audio
Features:
1). 1 Channel Bi-direcitonal (two way) Line-Level balanced audio XLR female and male. Transmission distance 20 Km on SMF or 500 meters on MMF with Bi-Directional Module;
2). Supports 16-bit digitally encoded broadcast quality balanced audio
3). Plug and Play design ensures adjustment-free installation and operation without adjusting the optical power level.
4). Easy stand-alone or rack-mount installation. LED indicators monitor the system operating status.
Specifications:
Optical：
Wavelength: 1310nm
Output Power: -14~ -8dBm
Supported Optical fiber: 50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity: -30dBm
Optical connector: 1 x FC (default), SC / ST / LC (optional)
Distance: 0~500 Meters over MMF, 0~20 KM over SMF
Balanced Audio:
Number of Channels: 1 (two ways)
Input Connector:XLR（female）
Output Connector:XLR（male）
Input / Output Impedance:10K Ohm
Input capacitance LINE inputs:10 pF
Max input/output voltage: +4 dBu (1.228 Volts)
Frequency Response:10 Hz～24kHz @±3dB
Sample Rates From:48kHz
SNR:> 80dB
Electrical & Mechanical:
Input Power Requirements:DC 5V@2A
Power Adapter:AC 90V~240V
Power Consumption:< 5W
Stand-Alone Dimensions:168mm × 154mm × 45mm
Shipping Weight:(include Transmitter & Receiver ) 2.5kg
Environmental:
Operating Temperature:-20°C ~ +75°C
Storage Temperature:-40°C ~ +85°C
Relative Humidity:0% ~ 95% (non-condensing)
MTBF:>100,000 hours
Application:
Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications
Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Adapters.
4. 1 x Manual

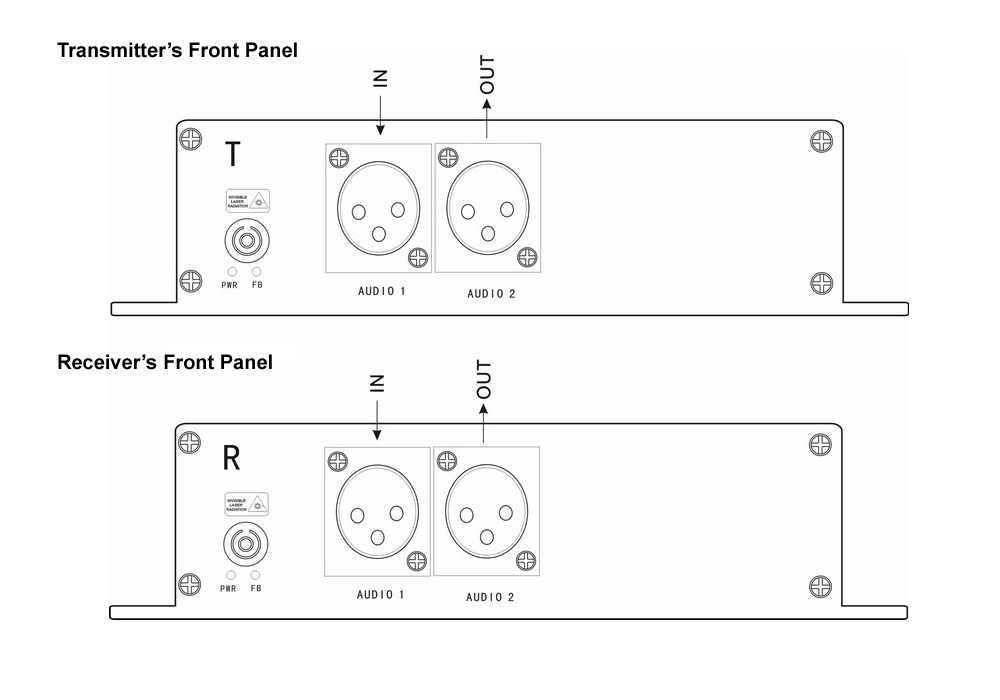

Diagram:
