Description:

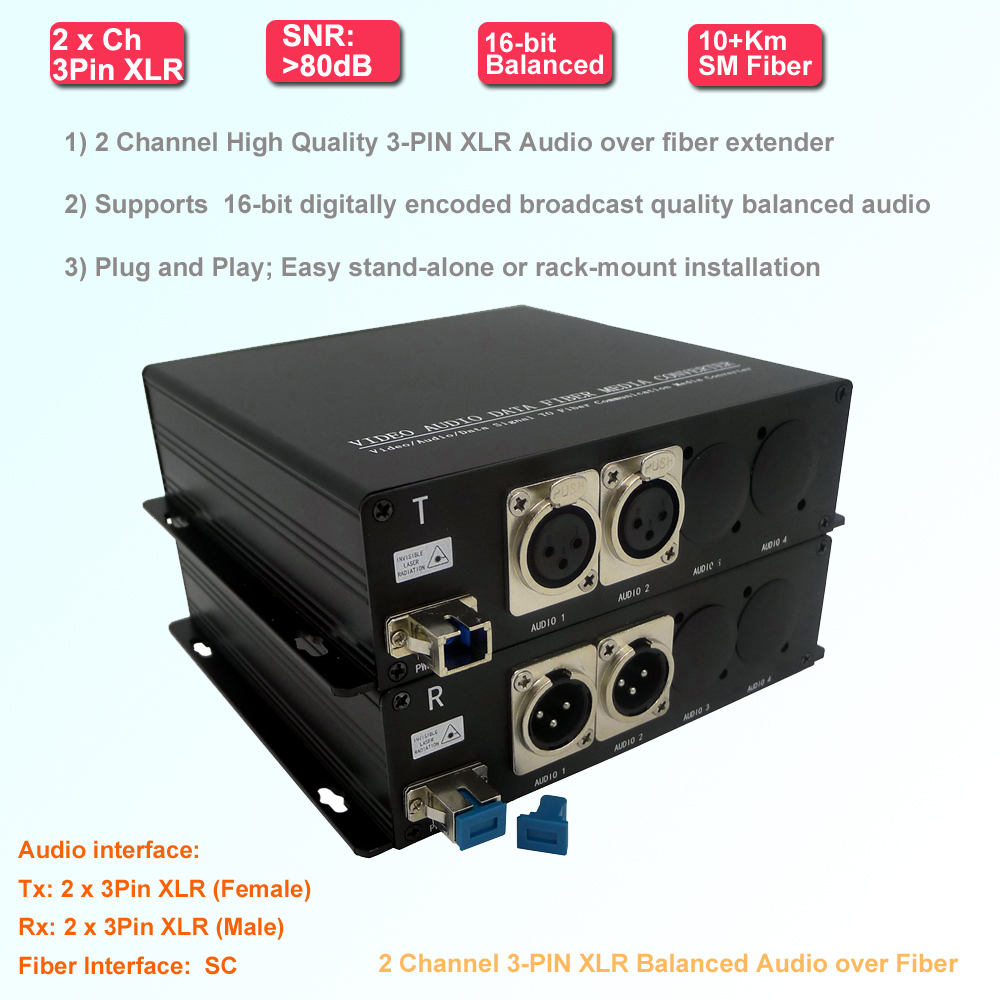

BY-XLR-349 is 2 Ch Line-Level Balanced audio over Fiber Extender to 10 Km(6.2 Miles) SM Fiber or 500 Meters MM Fiber, Broadcast Quality Balanced Audio (3 PIN XLR) Fiber Extender Supports 16-bit Digitally Encoded Audio
Features:
1) 2 Channel balanced audio XLR (female to male). 10Kilometers over SMF or 500 meters over MMF
2) Supports 16-bit digitally encoded broadcast quality balanced audio;
3).Easy stand-alone or rack-mount installation.
4) Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required;LED indicators are provided to instantly monitor the system operating status.
Specifications:
Optical
Wavelength: 1310nm
Output Power: -14~ -8dBm
Optic fiber: 50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity:-30dBm
Optical connector: 1 x FC (default), SC/ST (optional)
Distance: 500 Meters (MMF) / 10 Kilometers (SMF)
Balanced Audio:
Number of Channels: 2
Input Connector: XLR（female）
Output Connector: XLR（male）
Input / Output Impedance: 10K Ohm
Input capacitance LINE inputs: 10 pF
Max input/output voltage: +4 dBu (1.228 Volts)
Frequency Response: 20 Hz～24kHz @±3dB
Sample Rates From: 48kHz
SNR: > 80dB
Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter:AC 90V~240V
Power Consumption: < 5W
Stand-Alone Dimensions: 168mm × 154mm × 45mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg
Environmental:
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Application:
Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc
Package contains:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Adapter.
4. 1 x Manual.
Diagram:
