Discreption:

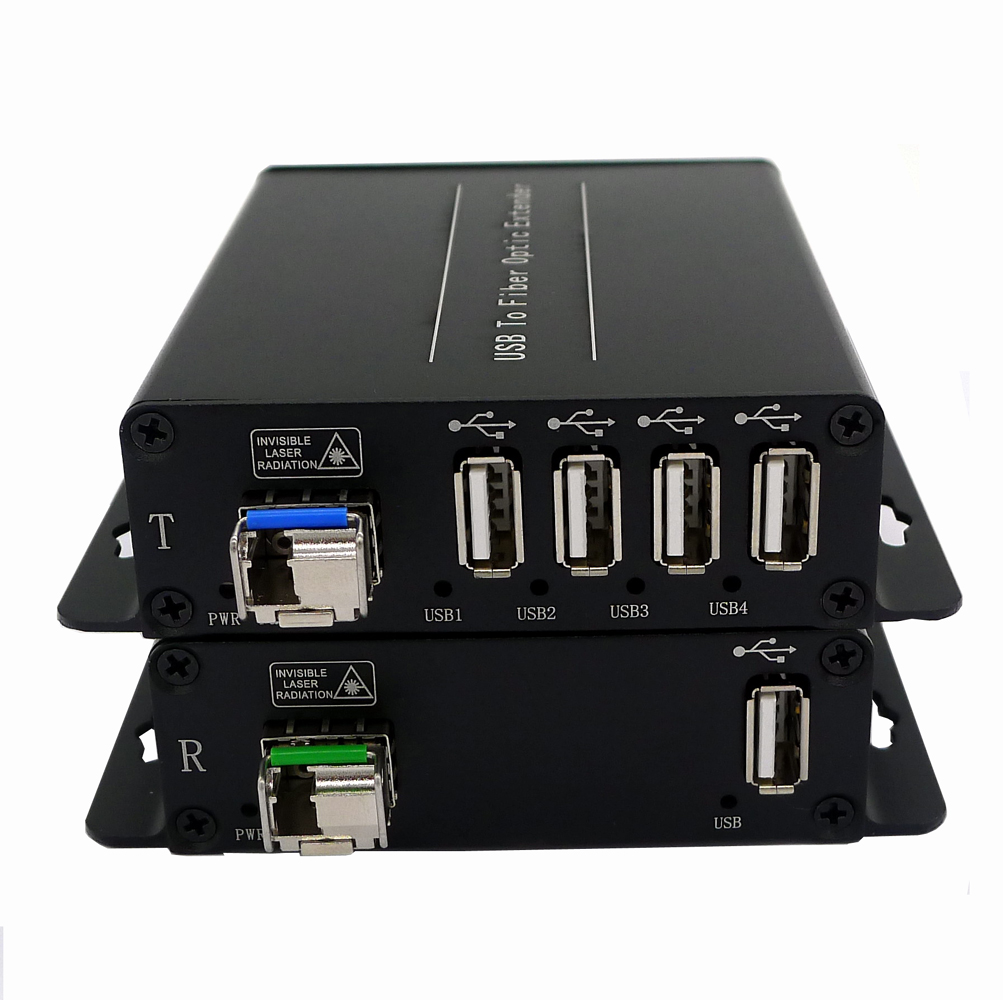

BY-USB-388SF includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 fiber cable, max distance 250 Meters (SM or MM fiber cable). it can also splitter 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.
It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Features:
1) 4 ports USB 2.0 extend to 1 port at display, or 1 port USB 2.0 splitted to 4 Ports USB 2.0
2) Max extension distance 250 Meters (820 FT) (SM or MM fiber).
3) 1 fiber bi-directional transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4) Auto recognition of High-speed（25Mbps～480Mbps）、Full-speed（500Kbps～12Mbps）、Low-speed（10Kbps～1.5Mbps）USB device.
5) Support USB1.1 and USB 2.0 devices like cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse and keyboard etc; Supports Orientalmotor Controlllers.
Specifications:
Optical Connector: 1 x LC/PC
Wave length: 1310nm
Support Fiber types: 50/125μm(MMF), 62.5/125μm(MMF), 9/125μm(SMF)
Physical Size (L× W ×H): 104mm x104mm x28mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5V DC
Transmitter power consumption: <3.5W
Receiver power consumption: <3.5W
Environment Working temperature: -20℃-70℃
Storage temperature: -40-85℃
Humidity: 0-95% (non-condensing)
USB interface(Type A):
Receiver: 1 port, connect to PC
Transmitter: 4 ports, connect to USB 2.0 device
Diagram:
