Description:

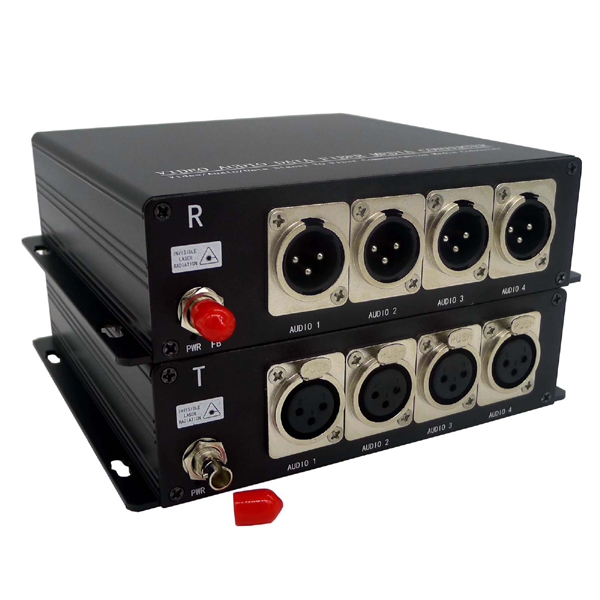

4ch AES/EBU audio optical fiber extender BY-AESEBU-709 series support 4 channels AES/EBU digital audio over 1 multimode or singlemode optical fiber.
Balanced AES/EBU input and output can be self-adaptive different sampling frequency. These fiber optic transmitter and fiber optic receiver are typically used
in applications of Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc
Features:
4ch AES/EBU audio optical fiber extender over 1 singlemode Fiber 20Km or 1 Multimode Fiber 500 Meters.
4ch Balanced AES/EBU input and output, can be self-adaptive different sampling frequency.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required.
LED indicators are provided to instantly monitor the system operating status.
Specifications:
Optical
Wavelength:1310nm
Output Power: -10~ -5dBm
Supported Optic fiber:50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity:-25dBm
Optical connector: FC (default), ST/SC/LC (optional)
Distance: 0~500M (MMF) or 0~20KM (SMF)
Balanced Audio
Number of Channels: 4
Input Connector:XLR（female）
Output Connector:XLR（male）
Input / Output Impedance:110 Ohm
Max input/output voltage:0.2～5 Vp-p
Sampling Frequency:self-adaption
Jitter: Less 0.005UIp-p
Electrical & Mechanical
Input Power Requirements:DC 5V@2A
Power Adapter:AC 90V~240V
Power Consumption:less 5W
Stand-Alone Dimensions:168mm × 154mm × 45mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg
Environment
Operating Temperature:-20°C ~ +75°C
Storage Temperature:-40°C ~ +85°C
Relative Humidity:0% ~ 95% (non-condensing)
MTBF:more than 100,000 hours
Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical moduel.
3. 2 x Power Adapter with US plug.
Diagram:
