Discreption:

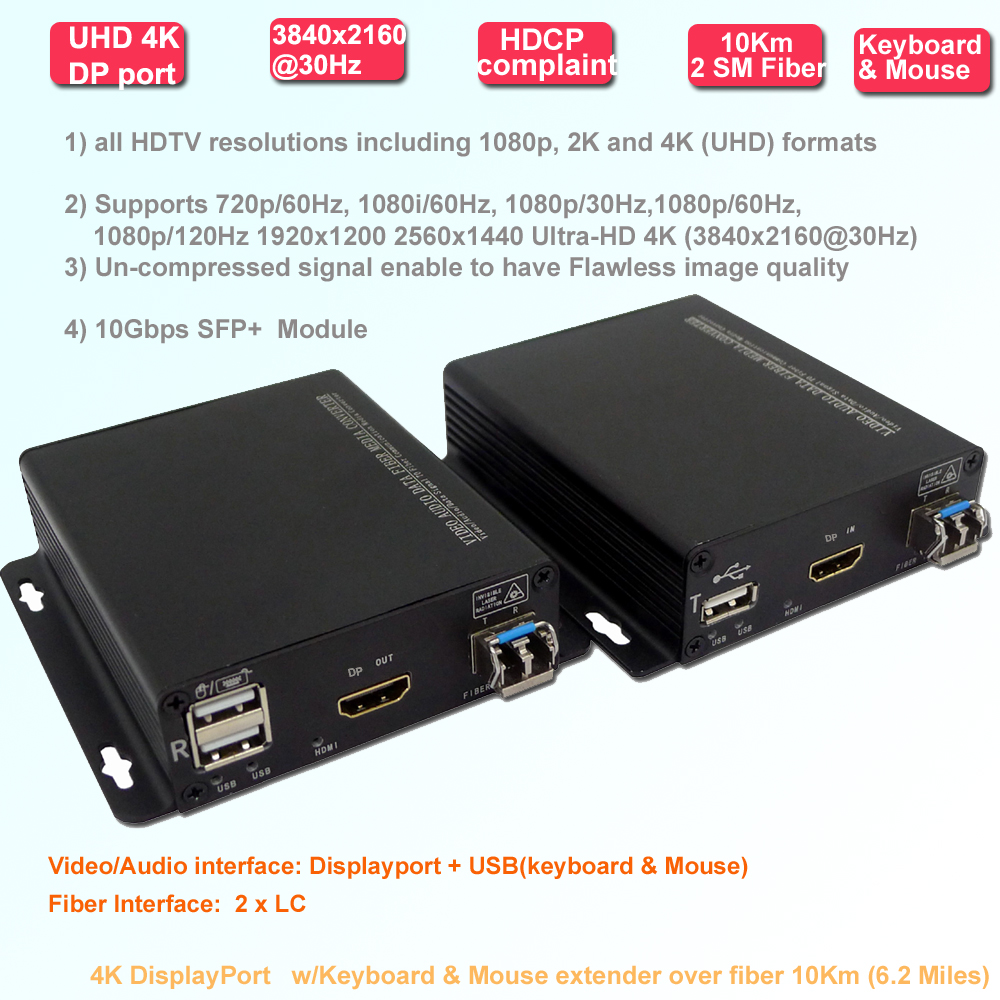

BY-DisplayPort-810 can distribute 4K/2K (3840x2160@30Hz) Displayport from a source devices( like a set-top box or Blue-Ray player) and USB(keyboard or mouse) signals over fiber cable
Features:
1 Supports 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz，1920x1200，2560x1440，Ultra-HD 4K (3840x2160@30Hz)
2 Max extension distance: 300 Meters over OM3 Multimode Fiber; 10 Kilometers over 9/125μ single-mode optical fiber
3 Supports HDCP，DPCD，DDC2B
4 Support USB ports (keyboard or mouse)
5 Maximum Video Bandwidth:10.8Gbps
Specification:
Compliance: Displayport V1.1
Maximum Video Bandwidth: 10.8Gbps
Digital Audio Support: Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio
Supported HDTV Formats: all HDTV resolutions including 1080p, 2K and 4K (UHD) formats
Supported PC Resolutions: 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz，1920x1200，2560x1440，Ultra-HD 4K (3840x2160@30Hz)
Optical:
Laser Source: 1310nm/1550nm
Max. Length/Fiber Cable Type: 300 Meters over OM3 MMF; 10 Kilometers over 9/125μ SMF
Connections:
Displayport: 20-pin DisplayPort female connectors
Optical Input / Output: 2 x LC, 1 x LC optical connectors
Construction: Aluminum
Weight: 700g per pair
Environmental:
Operating Temperature: 0° to +50° C
Storage Temperature: -20° to +70° C
Humidity: 10% to 90% (non-condensing)
Power Source:
AC Power Adapter:
Input: 100~240VAC / 50-60Hz, 0.5A
Output: 5VDC, 2.0A
Power Consumption: TX Unit: 3.5 watts RX Unit: 3.5 watts
USB interface:
TX has 1 port, connect to PC/ HDMI source
RX has 2 ports, connect to Cable keyboard & mouse
Applications:
it includes medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.
Diagram:
