Introduction:

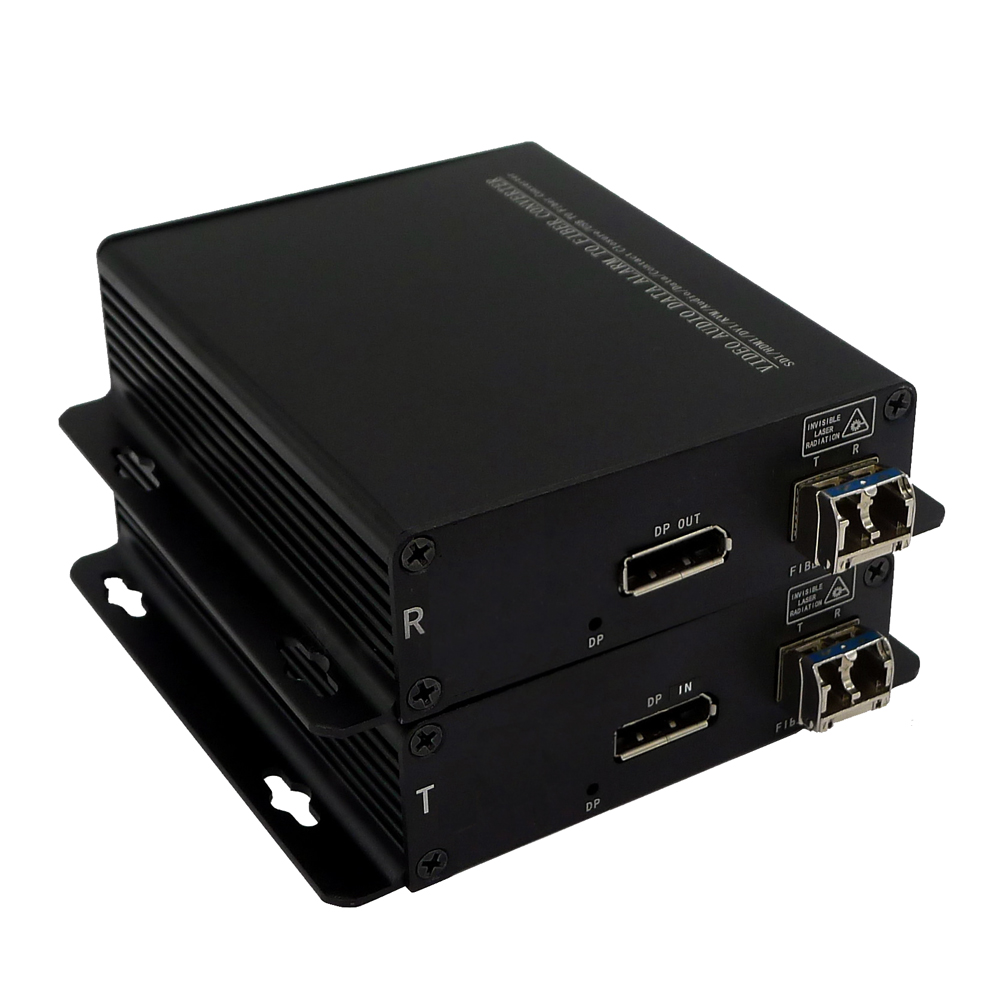

BY-DisplayPort-111DF/SF includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of extending 4K/2K Displayport over 2 or 1 fiber cable. These features make the equipment a powerful solution for digital display applications that require flawless signal quality over extremely long cable runs
Features:
Support Displayport V1.1; Supports HDCP，DPCD，DDC2B;
Supports Max Ultra-HD 4K (3840x2160@30Hz), Backwards Compatible with 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz，1920x1200，2560x1440
Max extension distance:10 Kilometers over 9/125μ single-mode optical fiber; 300 Meters over OM3 Multimode Fiber;
Maximum Video Bandwidth: 10.8Gbps
An Displayport input from a source device such as a set-top box or Blue-Ray player is converted into light pulses by an optical transmitter module for transmission over 2 or 1 core fiber optic. On the display side, an optical receiver module converts the light pulses back to an Displayport signals
Specifications:
Performance
Compliance: Displayport V1.1
Maximum Video Bandwidth:10.8Gbps
Digital Audio Support: Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio
Supported HDTV Formats: all HDTV resolutions including 1080p, 2K and 4K (UHD) formats Supported PC Resolutions: 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz,
1080p/120Hz，1920x1200，2560x1440，Ultra-HD 4K (3840x2160@30Hz)
Optical:
Optical Transmitter of Laser Source: 1310nm/1550nm
Optical Receiver: PIN Photo Diode
Max. Length/Fiber Cable Type:
10 Kilometers over 9/125μ single-mode optical fiber;300 Meters over OM3 Multimode Fiber;
Connections:
Displayport: 20-pin DisplayPort female connectors
Optical Input / Output: 2 x LC optical connectors, 1 x LC optional
Mechanical:
Construction: Aluminum enclosure
Dimensions: 104 mm x 104 mm x 28 mm
Weight: 700g per pair
Environmental:
Operating Temperature: 0° to +50° C
Storage Temperature: -20° to +70° C
Humidity (storage / operating): 10% to 90% (non-condensing)
Power Requirements:
Power Source: AC Power Adapter:
Input: 100~240VAC / 50-60Hz, 0.5A
Output: 5VDC, 2.0A
Maximum Power Consumption: TX Unit: 3.5 watts RX Unit: 3.5 watts
Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Supply Adapters with US/EU/UK/AU plug.
Front Panel & Connection Diagram:
