Features:
Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p
Support USB 2.0 devices, The receiver has 4 USB 2.0 ports to connect
Max extension distance 5 Kilometers (16400 FT) over 1 Single-mode Fiber
Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
HDCP compliance.
Performance:
Compliance:HDMI v1.4, HDCP v1.4, DVI v1.0 HDMI Input / HDMI Output:19-pin female HDMI connectors
HDMI Input / HDMI Output:19-pin female HDMI connectors
Optical Input / Output:1 x SC optical connectors
Mechanical:
Construction:Extruded Aluminum enclosure with black anodized finish
Dimensions: 175mm×154mm×30mm
Weight:1.5kg per pair
Environmental:
Operating Temperature:0° to +50° C
Storage Temperature:-20° to +70° C
Humidity (storage / operating):10% to 90% (non-condensing)
Power Requirements:
Power Source:Both Tx and Rx units must be powered using the supplied external AC power adapters
External AC Power Adapter:Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 4.0A
Maximum Power Consumption:TX Unit: 5 watts RX Unit: 20 watts
Application
Perfect for extended use of HDTV, LCD monitors, digital projectors, plasma TV's and other equipment requiring HDMI to Fiber conversion.
USB interface:
TX:1 port, connect to PC/ HDMI source
RX:4 ports, connect to USB devices, max 500mA
Package contains:

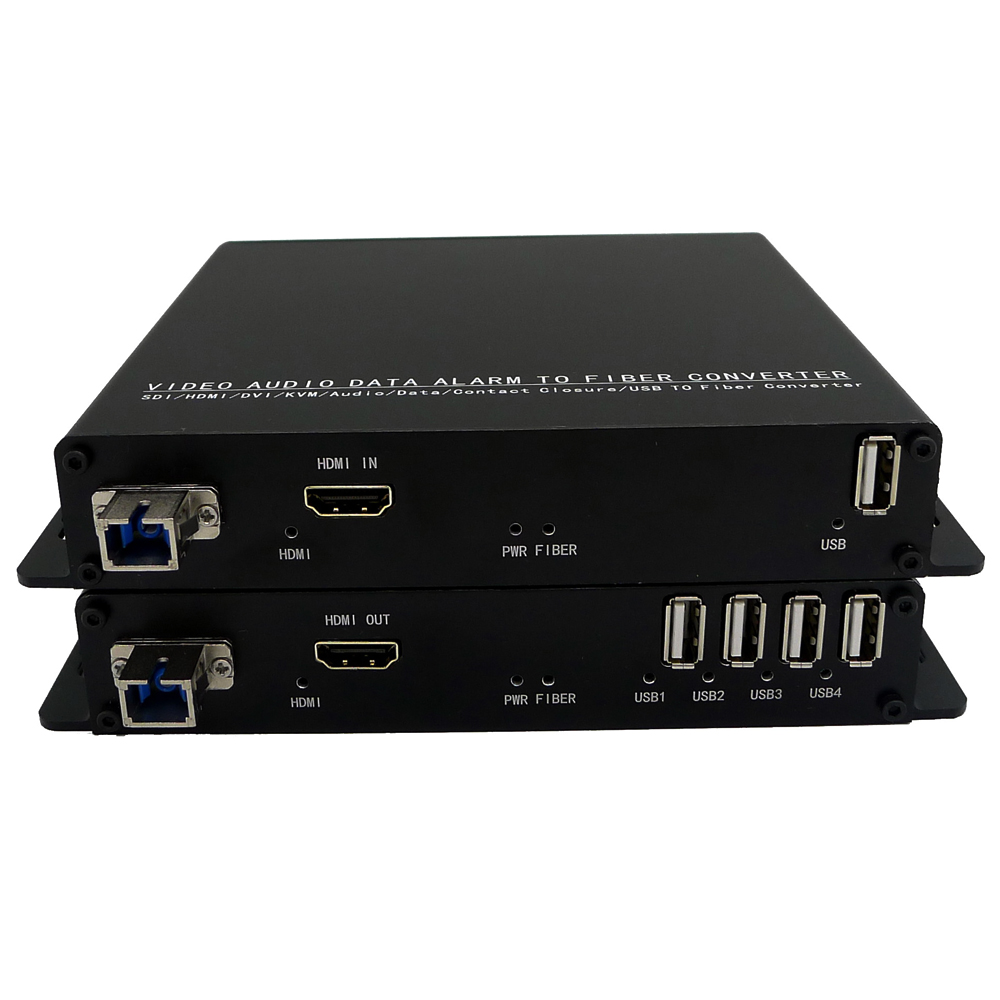

1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Adapters with US/UK/EU/AU plug
About shipment:
After order confirmed, we will dispatch the goods within 1~2 days by DHL for one week arrival.
Connection & Configuration:
