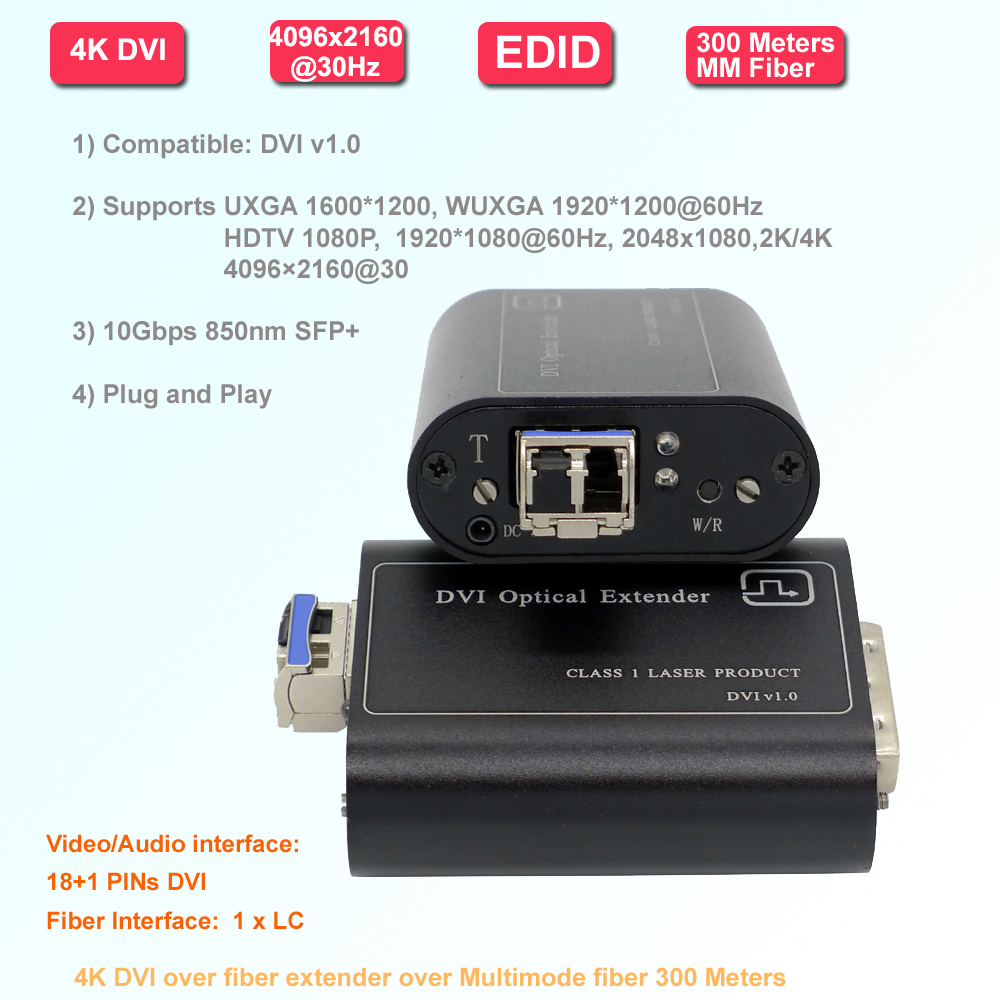

BY-DVI-316MSF is a fiber optic transport system capable of distributing high resolution DVI signals over a single optical OM3 Multimode fiber with cable lengths up to 300 Meters, the resolution up to 4096×2160 @30Hz. Connect the transmitter before use on the monitor, click the EDID key on the transmitter to read and write. EDID will be read and stored in the display. the EDID programming itself so that
it is able to adapt to the characteristics of different resolution of display system, make its use more convenient and reliable.
Features:
1.supports various high definition resolution ratio transmission, the highest can be reach UXGA 1600*1200 or WUXGA 1920*1200@60Hz or HDTV 1080P 1920*1080@60Hz, 2048x1080,2K/4K.
2. maximum resolution 4096×2160@30HZ .Max bandwidth 11Gbps.
3. Extension distance: Max 300 Meters over OM3 Multimode Fiber
4. with hot plugable 10Gbps SFP transceiver
Specifications:
Optical
Wavelength: 850nm
Output Power:-6~-1dBm
Optic fiber:OM3 multimode
Rx sensitivity:-16dBm
Optical connector:1 x LC
Distance:300 Meters (MM)
DVI Input/Output:
Output video:DVI 1.0
Input video signal:0.5～1.0V P-P
Input signal DDC:5V P-P (TTL)
Connector:18+1 DVI Male
General：
Input Power:5 V DC
Power consumption (maximum):2.4W(max)
Operating temperature:-20°C to 70°C
Storage temperature:-40°C to 85°C
Operating humidity:0 ~ 95% (non-condensing)
Net Weight:190g per pair
Case material:Aluminum
Product size:64mm×52mm×22.5mm( L/W/H)
Application:
Be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Diagram:
