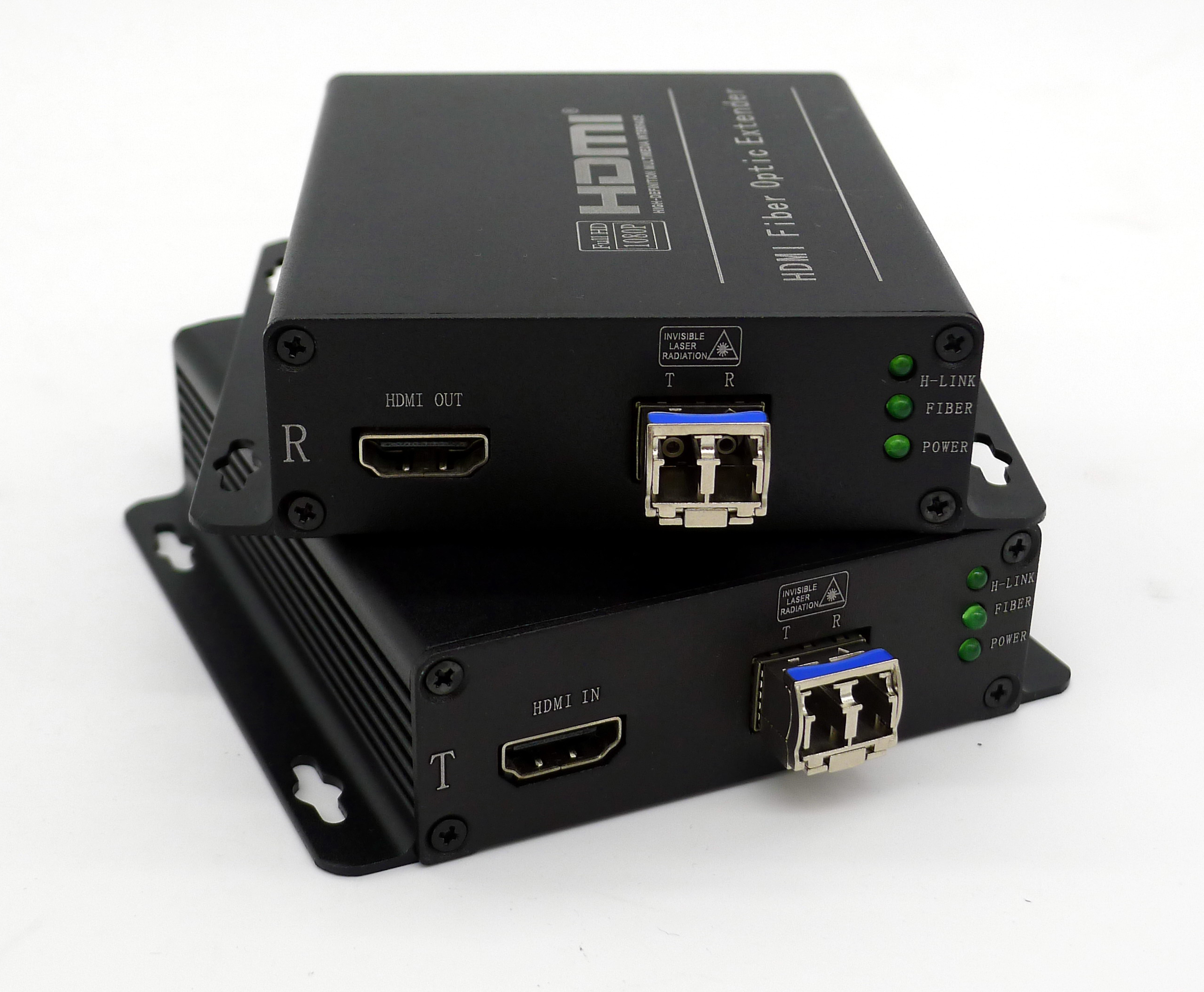

BY-HDMI-320 4K/2K HDMI Fiber Extender includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution 4K HDMI or DVI signals.
Features:
1. Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p
2. Max extension distance 10 KM(SM fiber) or 300 Meters (OM3 MM Fiber); with 10Gbps SFP+; support Full Duplex; LED indicators
3. Color Depth: 1080p resolution with up to 16 bits/pixel
4. Supports 4K HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
5. An 4K HDMI input signal from a source device like a set-top box or Blu-Ray player is converted into light pulses over 1 or 2 strands of fiber optic cable. On the display side, the receiver SFP module converts the light pulses back to the 4K HDMI signal for display on a monitor.. BY-HDMI-320 supports optical links over the single-mode fiber OM3 MM Fiber. it is a powerful solution for digital display applications that require flawless signal quality over extremely long fiber
Specification:
Compliance: DVI v1.0, HDMI v1.4, HDCP v1.4
Maximum Pixel Clock Frequency: Supports pixel clock rates up to 340 MHz
Maximum Video Bit Rate: Supports digital signal bit rates up to 3.4 Gbps per color
Color Depth: 1080p resolution with up to 16 bits/pixel
Digital Audio: Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio
HDTV Formats: all HDTV resolutions including 1080p, 2K and 4K (UHD) formats
PC Resolutions: up to 4096x2160 / 24p, 30p
Optical:
Laser Source: 1310nm DFB
Distance: 10KM over 9/125μ SM optical fiber or 300 Meters (OM3 MM Fiber)
Connections:
HDMI Input / HDMI Output: 19-pin female HDMI connectors
Optical connector: LC
Mechanical & Environmental:
Dimensions: 104 mm x 104 mm x 28 mm
Weight: 700g per pair
Material: Aluminum
Operating Temperature: 0° to +50° C
Storage Temperature: -20° to +70° C
Humidity (storage / operating): 10% to 90% (non-condensing)
External AC Power Adapter
Input: 100~240VAC / 50-60Hz, 0.5A
Output: 5VDC, 2.0A
Maximum Power Consumption
TX Unit: 3.5 watts
RX Unit: 3.5 watts
Application:
1. Digital entertainment centers
2. Retail stores
3. AV events that require reliable and long-distance distribution suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.

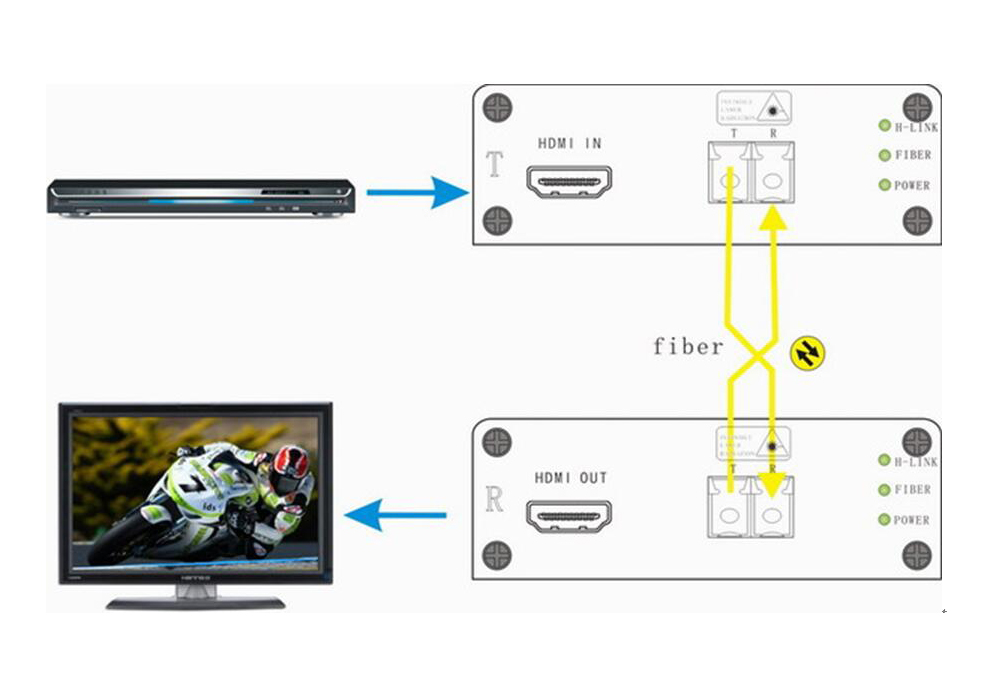

Diagram:
