EFP Fibre Transport 12G/3G-SDI, Audio,Intercom, Data, Genlock, Ethernet, Tally is a new portable fibre interface designed for use in Outside Broadcast and special events. A mixture of video and audio signals are combined to provide a flexible and cost effective solution for many production applications. it is specifically designed to mount on the back of a broadcast camera offering full comms, control and genlock plus Multi-Channels 12G / 3G-SDI signals.
BY-EFP-410 with Genlock and TC includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station, Genlock and TC, Sony or Panasonic Remote control data, , intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One color or two colors can be selected). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM tactical or SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features:
1) Handle all Pathological patterns
2) Automatic cable equalization to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
3) 10+Km on single mode fiber transmission
4) Mic inputs with mute and pre-amps
Sony or Panasonic remote control
Tally LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional
Genlock and TC are also available
Specifications:
General index
Work Temp | -25°C to 55°C |
Storage Temp | -40°C to 85°C |
humidity | 0 ~ 95% (non-condensing) |
Camera Optic Adaptor |
Input power | DC 11~19V |
Power consumption | <10W |
Net weight | 1kg |
Appearance size | 188mm*116mm*45mm (without V-mount / A-mount) |
Optic Base Station |
Input power | AC90~240V |
Power consumption | <10W |
Net weight | 3kg |
Appearance size | 19” 1U standard rack mount |
Optical：
Wavelength | 1310nm / 1550nm / CWDM |
Output Power | -6~-1dBm |
Rx sensitivity | <-18dBm |
Transmission Distance | SMPTE hybrid cable 300+m |
Optical connector | Lemo SMPTE 304 / Neutrik OpticalCON DUO |
SDI input/output:
Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
Cable Equalization | Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
SDI interface | BNC 75 Ohm |
Genlock / TC
Number of Channels | 1+1 |
Input/output impedance | BNC 75Ω (unbalance) |
Input/output voltage | 1.0Vp-p |
Differential Gain | < ±1.5% |
Differential Phase | < ±1% |
SNR | >60dB |
Intercom:
Camera Optic Adaptor |
Interface | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
Microphone | Mic inputs with mute and pre-amps |
Headphone | with volume up or down |
Optic Base Station |
Interface | 3pin XLR Female/Male: Party line audio for Clearcom and RTS Intercom main station DB9(Male): Line level audio input and output, |
Tally:
Camera Optic Adaptor |
Interface | 4pin air head or 3pin mini XLR |
Output | Dry Contact Closure or wet LED+/- |
On: short or LED on Off: open or LED off |
Optic Base Station |
Interface | DB9(Male) |
Input | Dry Contact Closure or TTL |
On: short to GND or TTL low Off: open or TTL high |
Remote:
Camera Optic Adaptor |
Interface | 8pin sony’s or 10pin Panasonic’s remote interface |
Data | RS422 /RS232/RS485 |
Optic Base Station |
Interface | DB9(Female) / 8pin sony’s or 10pin Panasonic’s remote interface |
Data | RS422 /RS232/RS485 |

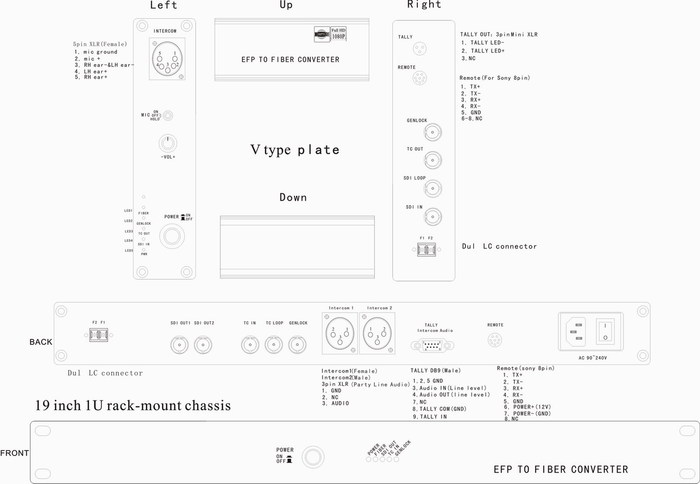

Panel diagram：
(for the large photo, please enlarge the same photo at the headline)
