EFP Fibre Transport 12G/3G-SDI, Audio,Intercom, Data, Genlock, Ethernet, Tally is a new portable fibre interface designed for use in Outside Broadcast and special events. A mixture of video and audio signals are combined to provide a flexible and cost effective solution for many production applications. it is specifically designed to mount on the back of a broadcast camera offering full comms, control and genlock plus Multi-Channels 12G / 3G-SDI signals.
Description:
BY-EFP-425 for Datavideo ITC-100 includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the Sony or Panasonic camera to the Base Station, Datavideo intercom (Camera end be connected Datavideo HP1 Single-Ear Headset, OB end be connected Datavideo ITC-100 Talkback System), tally(2 colors, Camera end be connected Datavideo ext tally lamp TD3, OB end be connected Datavideo ITC-100 Talkback System), BB/TC/Genlock can be optional. The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features:
Handle all Pathological patterns
Automatic cable equalization to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
10+Km on single mode fiber or 300m on multimode fiber transmission
Mic inputs with mute and pre-amps ,with amplifier for phones
Intercom and Tally with Datavideo ITC-100 Talkback System
V-mount or A-mount battery plate optional
Specifications:
General index
Work Temp: -25°C to 55°C
Storage Temp: -40°C to 85°C
Humidity: 0 ~ 95% (non-condensing)
Camera Optic Adaptor
Input power: DC 11~19V
Power consumption: <8W
Net weight: 1kg
Appearance size: 188mm*116mm*45mm(without V-mount / A-mount)
Optic Base Station
Input power: AC90~240V
Power consumption: <20W
Net weight: 3kg
Appearance size: 19” 1U standard rack mount
Optical:
Wavelength: 1310nm / 1550nm / CWDM
Output Power: -6~-1dBm
Rx sensitivity: <-18dBm
Transmission Distance: SM fiber 10km , MM fiber 300m
Optical connector: Dul LC /FC/ST optional
SDI input/output:
Signal format: SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate: 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization: Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface: BNC 75 Ohm
Intercom:
Camera Optic Adaptor
Interface: 3.5mm headset jack, Datavideo Headset
Microphone: Mic inputs with mute and pre-amps
Headphone: With amplifier and volume up or down
Optic Base Station
Interface: 5pin XLR Male, be connected Datavideo Talkback System
Tally:
Camera Optic Adaptor
Interface: 3.5mm headset jack, be connected Datavideo ext tally lamp
Output: Green/Red 2 colors
On: LED on
Off: LED off
Optic Base Station
Interface: 5pin XLR Male
Input: be connected Datavideo Talkback System

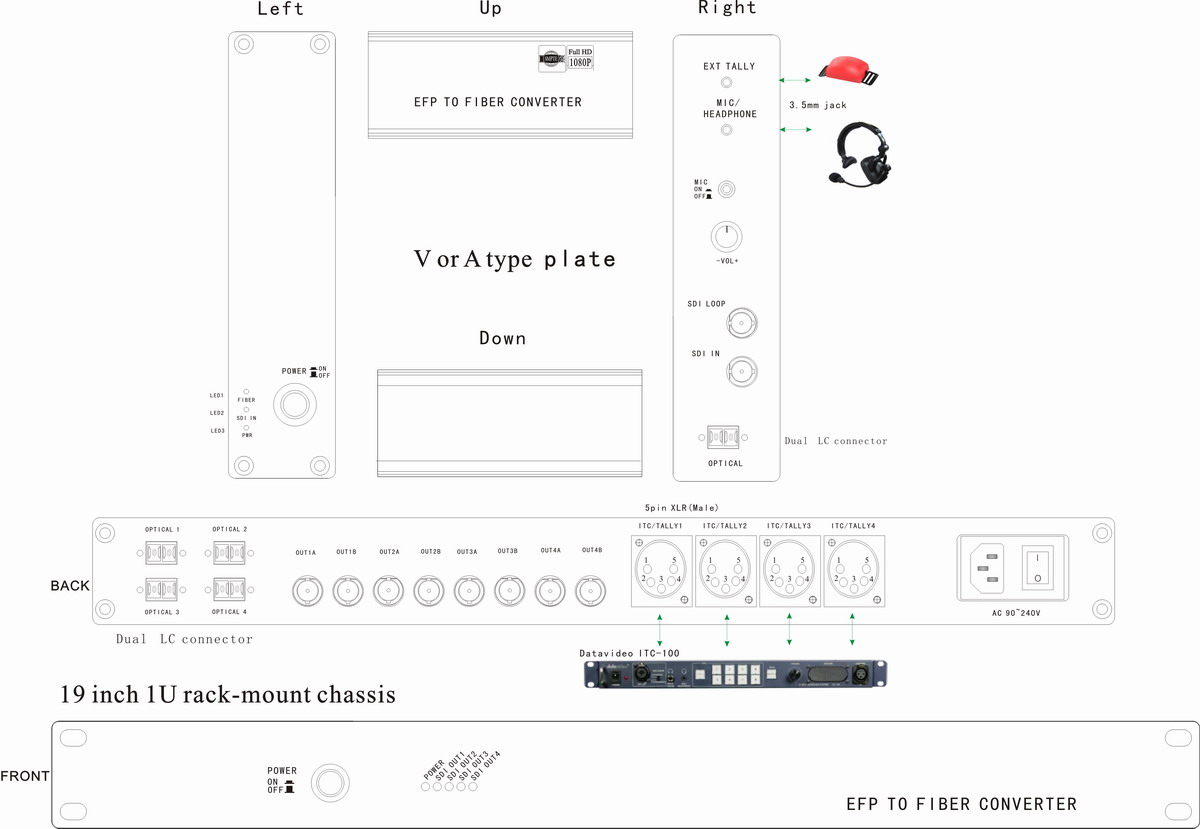

Diagram:

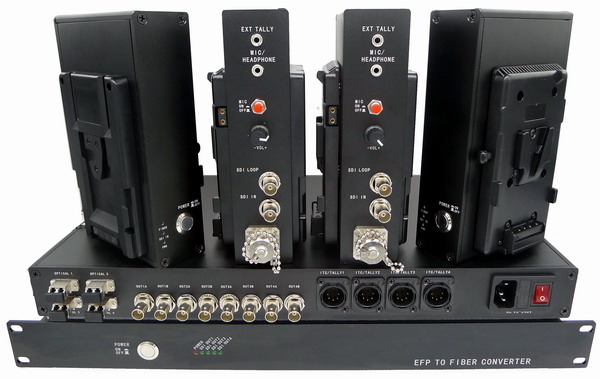

(for the large photo, please enlarge the same photo at the headline)
