EFP Fibre Transport 12G/3G-SDI, Audio,Intercom, Data, Genlock, Ethernet, Tally is a new portable fibre interface designed for use in Outside Broadcast and special events. A mixture of video and audio signals are combined to provide a flexible and cost effective solution for many production applications. it is specifically designed to mount on the back of a broadcast camera offering full comms, control and genlock plus Multi-Channels 12G / 3G-SDI signals.
Description:
BY-EFP-407

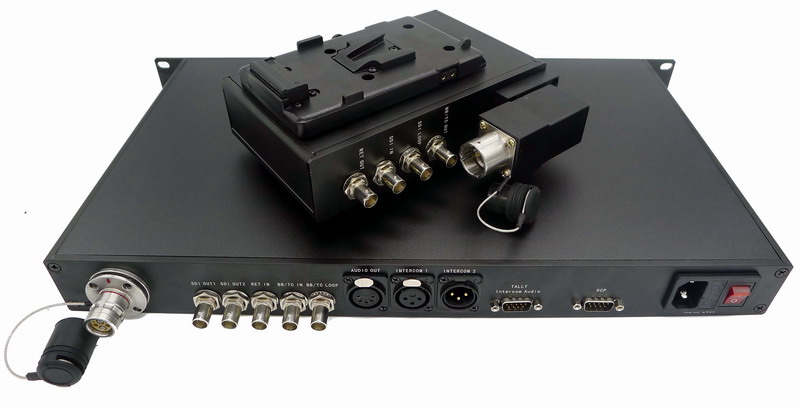

with LEMO power supply includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Sony or Panasonic Remote control data, TC/BB/Genlock, intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One color or two colors can be selected). Remote camera power supply (14VDC up to 150 Watts).The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Adapter view & Functions:
Features:
Handle all Pathological patterns
Automatic cable equalization to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
300+m on SMPTE hybrid cable
RS422 remote control
Tally LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional
Remote camera power supply (14VDC up to 150 Watts), with insertion detection protection
Priority selection of hybrid cable power supply, with battery charge protection
Lemo SMPTE 304 or Neutrik OpticalCON DUO hybrid connector
Specifications:
General index
Work Temp | -25°C to 55°C |
Storage Temp | -40°C to 85°C |
humidity | 0 ~ 95% (non-condensing) |
Camera Optic Adaptor |
Input power | DC 11~19V |
Power consumption | <10W |
Net weight | 1kg |
Appearance size | 188mm*116mm*45mm (without V-mount / A-mount) |
Optic Base Station |
Input power | AC90~240V |
Power consumption | <10W |
Net weight | 3kg |
Appearance size | 19” 1U standard rack mount |
Optical：
Wavelength | 1310nm / 1550nm / CWDM |
Output Power | -6~-1dBm |
Rx sensitivity | <-18dBm |
Transmission Distance | Remote power 150W，SMPTE hybrid cable 200+m |
Optical connector | Lemo SMPTE 304 / Neutrik OpticalCON DUO Camera end can be rotated 90 degrees |
SDI input/output:
Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
Cable Equalization | Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
SDI interface | BNC 75 Ohm |
Intercom:
Camera Optic Adaptor |
Interface | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
Microphone | Mic inputs with mute and pre-amps |
Headphone | with volume up or down |
Optic Base Station |
Interface | 3pin XLR Female/Male: Party line audio for Clearcom and RTS Intercom main station DB9(Male): Line level audio input and output, |
Tally:
Camera Optic Adaptor |
Interface | 4pin air head or 3pin mini XLR |
Output | Dry Contact Closure or wet LED+/- |
On: short or LED on Off: open or LED off |
Optic Base Station |
Interface | DB9(Male) |
Input | Dry Contact Closure or TTL |
On: short to GND or TTL low Off: open or TTL high |
Remote:
Camera Optic Adaptor |
Interface | 8pin sony’s or 10pin Panasonic’s remote interface |
Data | RS422 /RS232/RS485 |
Optic Base Station |
Interface | DB9(Female) / 8pin sony’s 10pin Panasonic’s remote interface |
Data | RS422 /RS232/RS485 |
Panel Diagram:
(for big photo, please enlarge the same photo at the head)
