Introduction:
BY-PUSB-327 includes a transmitter（client-side）and a PCI E extension card receiver（host-side）which is installed in the PCIe sloExts in the host computer. it can extend the Super Speed USB 3.0/2.0/1.1 Signal to a remote location over 250 Meters (820 FT) 2 or 1 core Single-mode fiber cable
Features:
Support USB 3.0 Super Speed up to 5 Gbps, Backwards compatible with USB 2.0 and USB 1.1
Host side powered via USB port from host PC; Compatible with PCI Express Base 2.0 Specification; Compatible with xHCI Specification Revision 1.0.
Max extension distance 250 Meters over 2 or 1 core SMF fiber cable;
Support Full Duplex; with 10 Gbps SFP module
Transparent USB; Plug and Play (no software drivers needed); Only Support Windows 8，Windows 8.1 and Windows 10 operation systems;
Specification:
Each USB port of Tx supports Data rates
* Super-Speed (5.0 Gbps)
* High-Speed (480 Mbps)
* Full-Speed (12 Mbps)
* Low-Speed (1.5 Mbps)
Optical
Optical Connector: 1 x LC, 2 x LC optional
Wavelength: 1310nm
Support Fiber types: 9/125μm(SMF)
Physical
Size (L× W ×H):
1).Client unit: 104 mm x104 mm x28 mm

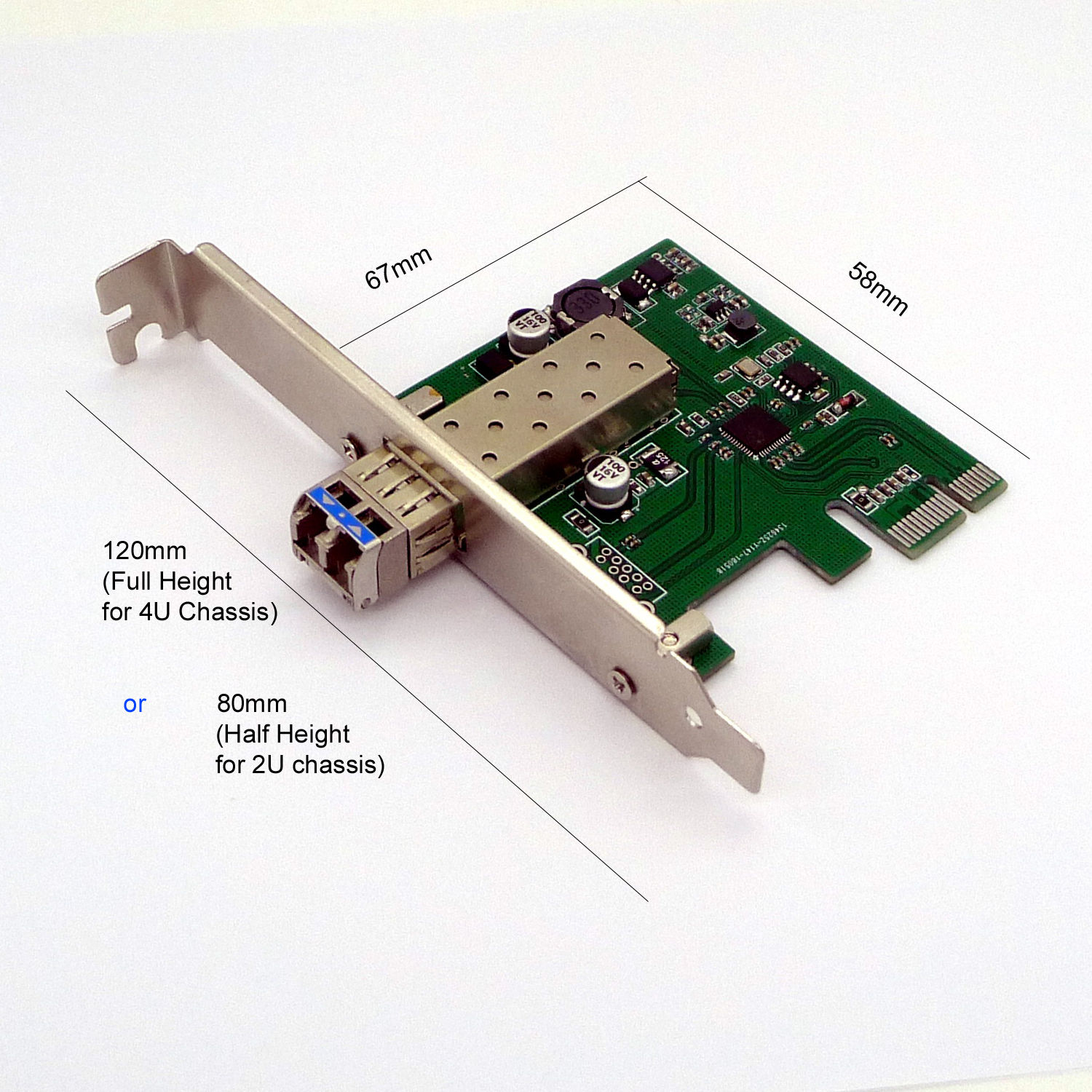

2) The Card at Host: 120 mm (for 4U chassis)x 67 mm x 58 mm; 80 mm (for 2U chassis)x 67 mm x 58 mm;
Case material:Aluminum
Color:Black
N.W.:0.5Kg
Power
Sender Voltage:5~12V DC
Sender power consumption: < 5W
Receiver power consumption: < 2W
Enviroment
Operation temperature:0-70℃<br>
Storage temperature: -40° to +85° C.
Humidity:0-95% (non-condensing)
Operation systems: Only Support Windows 8，Windows 8.1 and Windows 10 operation systems
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).
3.HD video surveillance system.
4.High - speed data acquisition system.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8.Kinect devices and Xbox; USB 3.0 Wireless Adapter etc;
Package:
1. 1 x transmitter (client side) with SFP optical module.
2. 1 x PCI-E card (host side) with SFP optical module.
3. 1 x Power Supply Adapter DC 5~12V with US/EU/UK/AU plug.
4. 1 x Manual.

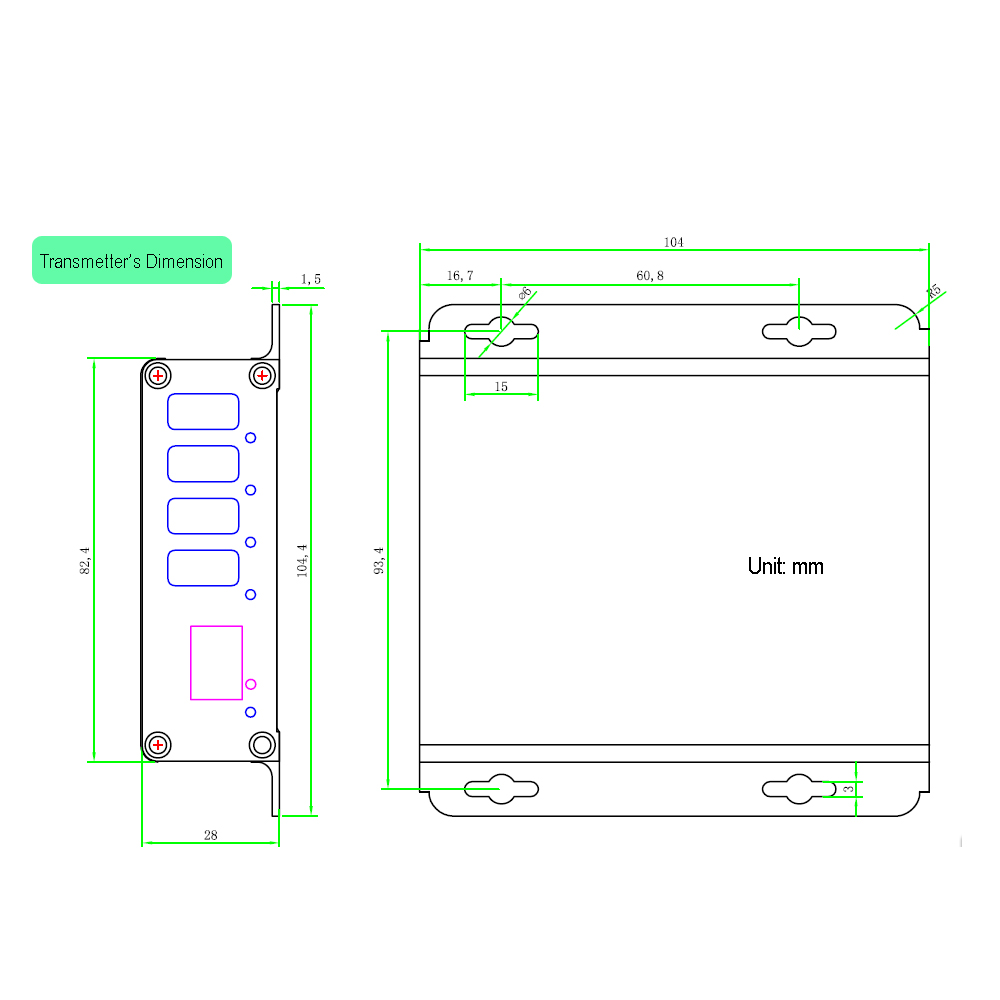

Dimension & Connection:
