EFP Fibre Transport 12G/3G-SDI, Audio,Intercom, Data, Genlock, Ethernet, Tally is a new portable fibre interface designed for use in Outside Broadcast and special events. A mixture of video and audio signals are combined to provide a flexible and cost effective solution for many production applications. it is specifically designed to mount on the back of a broadcast camera offering full comms, control and genlock plus Multi-Channels 12G / 3G-SDI signals.
Description:
BY-EFP-418 for JVC includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the JVC camera to the Base Station, 1 ch Reverse 3G/HD-SDI, PGM, Genlock or TC/BB, Remote control(Connect a Remote Control Unit RM-LP25/RM-LP55/RM-LP57), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), Remote camera power supply (15V DC up to 150 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM tactical or SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features:
1 ch forward and 1 ch reverse SDI
Handle all Pathological patterns
Automatic cable equalization to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
10+Km on single mode fiber transmission
Mic inputs with mute and pre-amps
Headphone with PGM / Intercom volume up or down
Remote control (Connect a Remote Control Unit RM-LP55/RM-LP57)
Tally LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional, Upper battery plate can be changed to heat sink
Genlock or TC/BB are also available
Remote camera power supply (15V DC up to 150 Watts), with insertion detection protection
Specifications:
General index:
Work Temp: -25°C to 55°C
Storage Temp: -40°C to 85°C
Humidity: 0 ~ 95% (non-condensing)
Camera Optic Adaptor
Input power: DC 11~19V
Power consumption: <12W
Net weight: 1kg
Appearance size: 188 mm*116 mm*45 mm (without V-mount / A-mount)
Optic Base Station
Input power: AC90~240V
Power consumption: <12W
Net weight: 3kg
Appearance size: 19” 1U standard rack mount
Optical：
Wavelength：1310nm / 1550nm / CWDM
Output Power： -6~-1dBm
Rx sensitivity： <-18dBm
Transmission Distance： Remote power 150W，SMPTE hybrid cable 200+m
Optical connector： Lemo SMPTE 304 / Neutrik OpticalCON DUO
Camera end can be rotated 90 degrees
SDI input/output:
Signal format： SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate： 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization： Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface： BNC 75 Ohm
Genlock / TC / BB
Number of Channels： 1
Input/output impedance： BNC 75Ω (unbalance)
Input/output voltage： 1.0Vp-p
Differential Gain： < ±1.5%
Differential Phase： < ±1%
SNR： >60dB
Intercom:
Camera Optic Adaptor
Interface： 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Microphone： Mic inputs with mute and pre-amps
Headphone： with volume up or down
Optic Base Station
Interface：1） 3pin XLR Female/Male: Party line audio for Clearcom and RTS Intercom main station ,or Line 2） level balanced audio input and output
3） DB9(Male): Line level unbalanced audio input and output,
PGM:
Camera Optic Adaptor
Interface： 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Headphone： with volume up or down
Optic Base Station
Interface： 3pin XLR Female: Line level balanced audio input
Tally:
Camera Optic Adaptor
Interface： 4pin air head or 3pin mini XLR
Output：1） Dry Contact Closure or wet LED+/-
2）On: short or LED on
3）Off: open or LED off
Optic Base Station
Interface： DB9(Male)
Input：1）Dry Contact Closure or TTL
2）On: short to GND or TTL low
3）Off: open or TTL high
Remote：
Camera Optic Adaptor
Interface： JVC Round 6-pin
Data： JVC Remote Control data
Optic Base Station
Interface：JVC Round 6-pin
Data：JVC Remote Control data

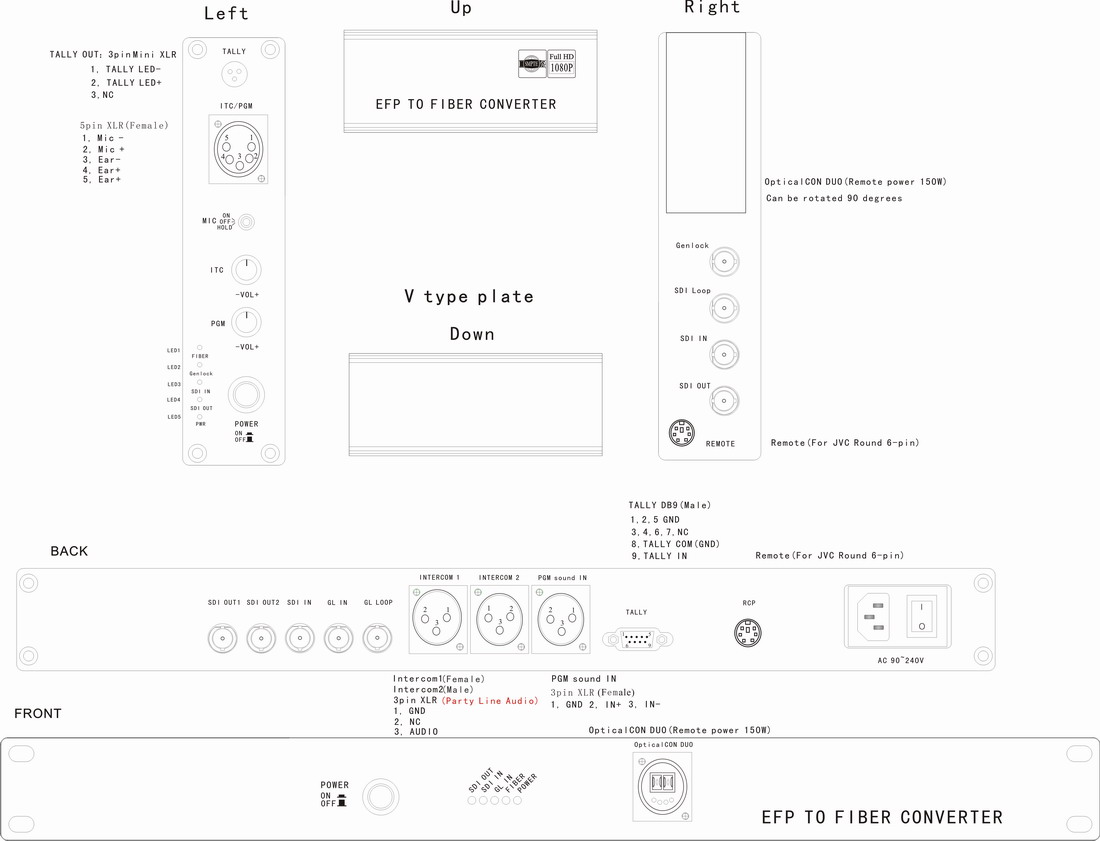

Diagram：
(for the large photo, please enlarge the same photo at the headline)
