Description:

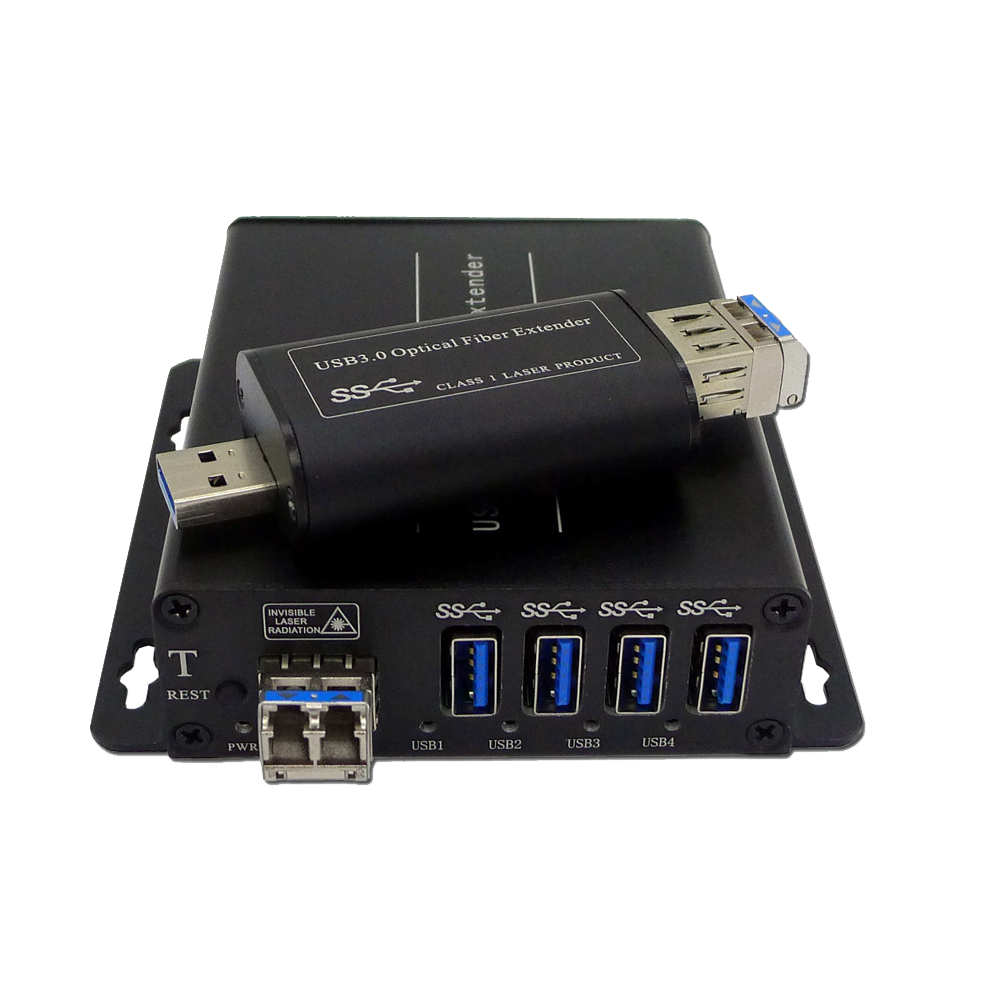

BY-USB-327 includes a transmitter（client-side） and a receiver（host-side）, which can extend the Superspeed USB 3.0/2.0/1.1 Signal to a remote location over 2 or 1 core Single-mode fiber cable, Max distance 250 Meters.
Features:
1) Max extension distance 250 Meters (820 FT) over 2 or 1 core fiber.
2) with 10 Gbps SFP module, pure hardware design, no driver needed, compatible with all operation systems, support Full Duplex.
3) Support USB 3.0 Superspeed up to 5Gbps, USB 3.0 Type A Receptacle
4) Backwards compatible with USB 2.0 and USB 1.1
5) Extend high bandwidth USB 3.0 webcams and storage devices ; USB 3.0 Wireless Adapter etc; be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities, Kinect devices etc
Note: Backwards compatible with USB 2.0 and USB 1.1 for 4 ports the transmitter at the client side, the receiver must be inserted into USB 3.0 port the host computer. Aditionally, 4 Ports of the hub share the 5 Gbps Capacity of 1 port at the local side, so it allows only 1~2 USB ports (like USB 3.0 Camera) work at the FULL speed at the SAME time, but for U disc, each of 4 ports can work at the SAME time.
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).
3.HD video surveillance system.
4.High - speed data acquisition system like FMC & TFM.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8.Kinect devices and Xbox; USB 3.0 Wireless Adapter etc.
Specification:
Each USB port of Tx supports Data rates
* Super-Speed (5.0 Gbps)
* High-Speed (480 Mbps)
* Full-Speed (12 Mbps)
* Low-Speed (1.5 Mbps)
Optical
Connector: 1 x LC, 2 x LC
Wavelength:1310nm
Support Fiber types: 9/125μm(SMF)
Physical
Size (L× W ×H):104mm x104mm x28mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
PowerVoltage:5V DC
sender power consumption:<5W
receiver power consumption:<5W
Environment
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)
Dimension:
Diagram:
Diagram:
