Discreption:

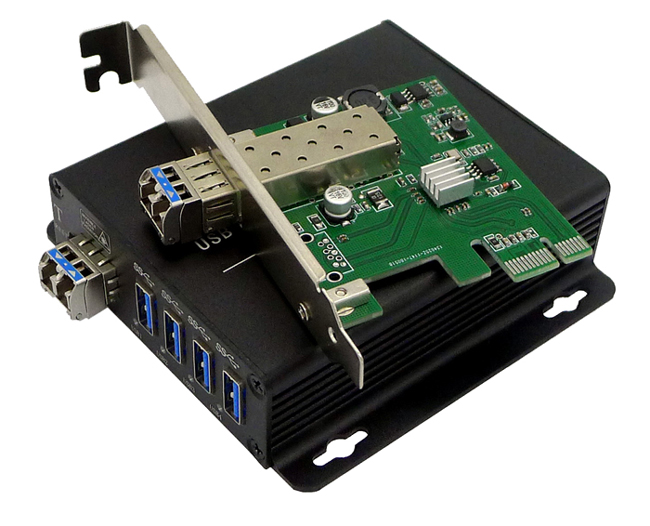

BY-PUSB-428 includes a transmitter（client-side）and a PCI-E to USB 3.0 fiber expansion card（host-side）which is installed in the PCIe sloExts in the host computer.
it can extend the SuperSpeed USB 3.0 to a remote location over 2 or 1 core fiber cable, max distance 250 Meters (820 FT) over Single-mode Fiber. It also can split 1 USB3.0 interface to 4 ports USB3.0 interface.
Features:
1, Compliant with PCI Express Base 2.0 Specification; Compliant with xHCI Specification Revision 1.0
3, Max extension distance 250 Meters over 2 or 1 core SMF fiber cable.
4, Support Full Duplex. with 10Gbps SFP module.
5, Pure hardware design, no driver needed, support plug and play; Compliant with Windows 8，Windows 8.1，and Windows 10 operation systems.
7, Support USB 3.0 Super Speed up to 5Gbps, 4 USB 3.0 Type A Receptacle, but Not backwards compatible with USB 2.0 and USB 1.1
Specification:
Optical
Optical Connector: 2 x LC , 1 x LC optional
Support Fiber types: 9/125μm(SMF)
Wavelength: 1310nm
Physical

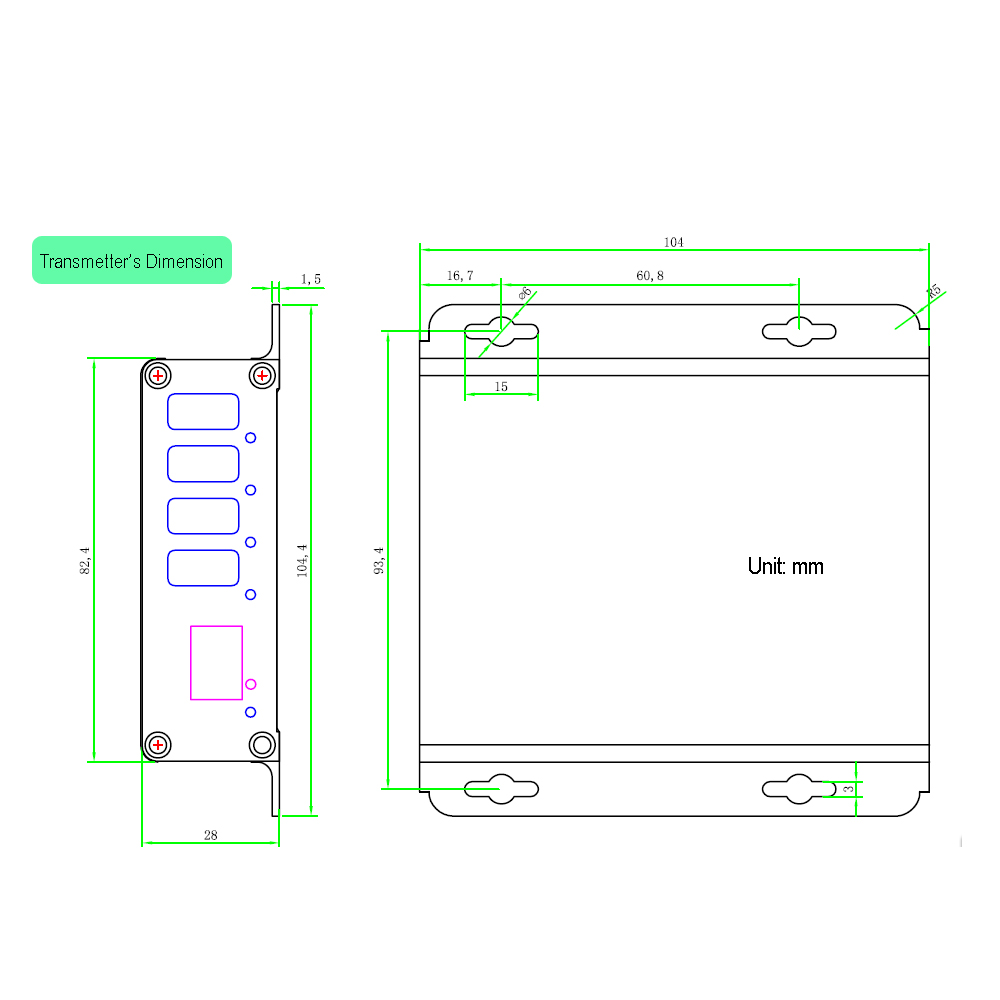

Size (L× W ×H): 104mm x104mm x28mm
Case material:Aluminum
Color:Black
N.W.:0.5Kg
Power
Sender Voltage:5~12V DC
sender power consumption: Less 5W
receiver power consumption: Less 2W
Environment
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity:0-95% (non-condensing)
Application:
1.Industrial video transmission
2.Machine vision system
3.HD video surveillance system
4.High - speed data acquisition system
5.Remote storage
6.Digital signage and TV wall
7.Industrial printer system
8.Kinect devices; USB 3.0 Wireless Adapter etc;
9.ROV camera (Remote Operated Underwater Vehicle).
Diagram:
