Introduction:

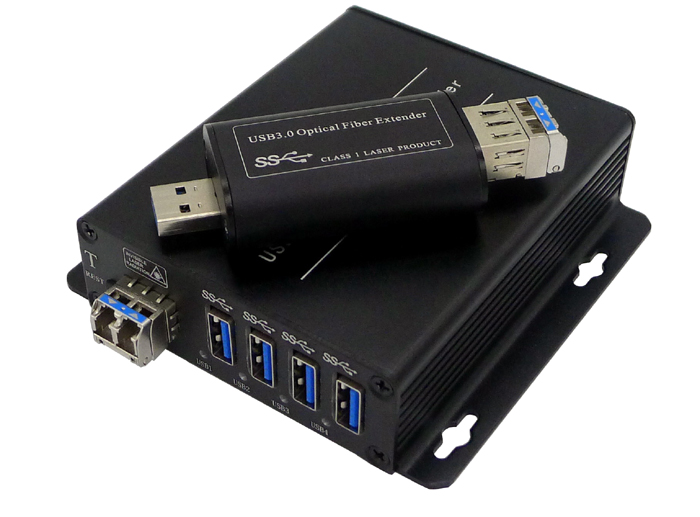

USB 3.0 To Fiber Hub, BY-USB-412 includes a transmitter（client-side） and a receiver（host-side), which can extend the Super Speed USB 3.0 to a remote location over 2 or 1 core Single-mode fiber cable, max distance 250 Meters. It also can split 1 USB 3.0 interface to 4 ports USB3.0 interfaces.
Features:
1). Supports Kinect devices and Xbox; USB 3.0 Wireless Adapter etc;
2). Max extension distance 250 Meters.
3). Full Duplex LC fiber connector, pure hardware design, no driver needed, compatible with all operation systems, support hot plug and play
4). Support USB 3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
5). Not backwards compatible with USB 2.0 and USB 1.1
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).
3.HD video surveillance system.
4.High - speed data acquisition system like FMC & TFM.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8.Kinect devices and Xbox; USB 3.0 Wireless Adapter etc;
Specification:
Optical
Optical Connector: 2 x LC, 1 x LC Optional
Wave length:1310nm
Support Fiber types: 9/125μm(SMF)
Physical
Size (L× W ×H):104mm x104mm x28mm
Case:Aluminum
Color:Black
N.W.:0.5Kg
Power Voltage:5~12V DC
sender power consumption:<5W
receiver power consumption:<2W
Environment
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity:0-95% (non-condensing)

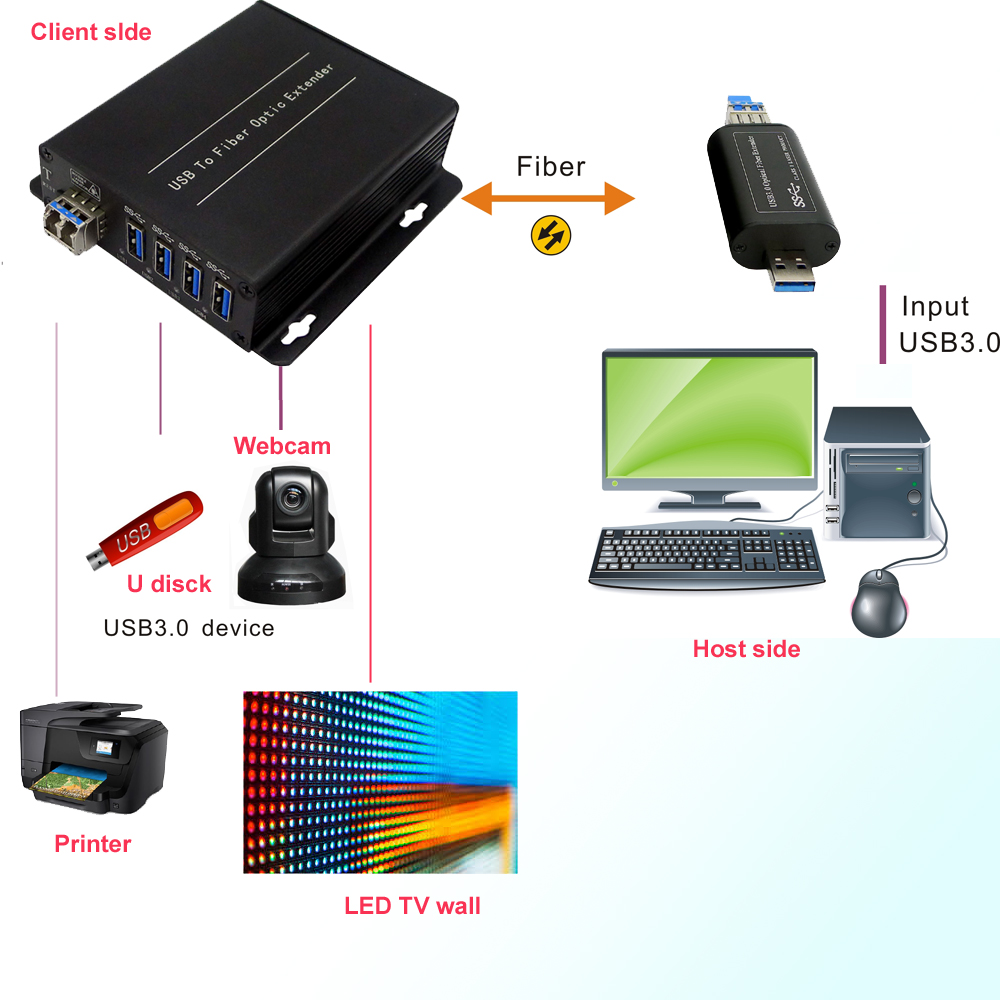

Diagram:
