Discreption:
BY-PUSB-729 includes a transmitter（client-side）and a PCI-E extension card receiver（host-side）which is installed in the PCIe sloExts in the host computer.
it can extend the SuperSpeed USB 3.0 to a remote location over 2 or 1 core fiber cable, max distance 250 Meters (820 FT) over Single-mode Fiber.
Features:
1, Compliant with PCI Express Base 2.0 Specification; Compliant with xHCI Specification Revision 1.0
2, Max extension distance 250 Meters over 2 or 1 core SMF fiber cable.
3, Support Full Duplex and Kinect devices. with 10Gbps SFP module.
4, Transparent USB; Plug and Play (no software drivers needed); Compliant with Windows 8，Windows 8.1，and Windows 10 operation systems; Host-side powered via USB port from host PC
5, Support USB 3.0 Super Speed up to 5Gbps, but Not backwards compatible with USB 2.0 and USB 1.1
Specification:
Optical
Optical Connector: 2 x LC, 1 x LC optional
Wavelength: 1310nm
Support Fiber types: 9/125μm(SMF)
Physical Size (L× W ×H):
1).Client unit: 104 mm x104 mm x28 mm

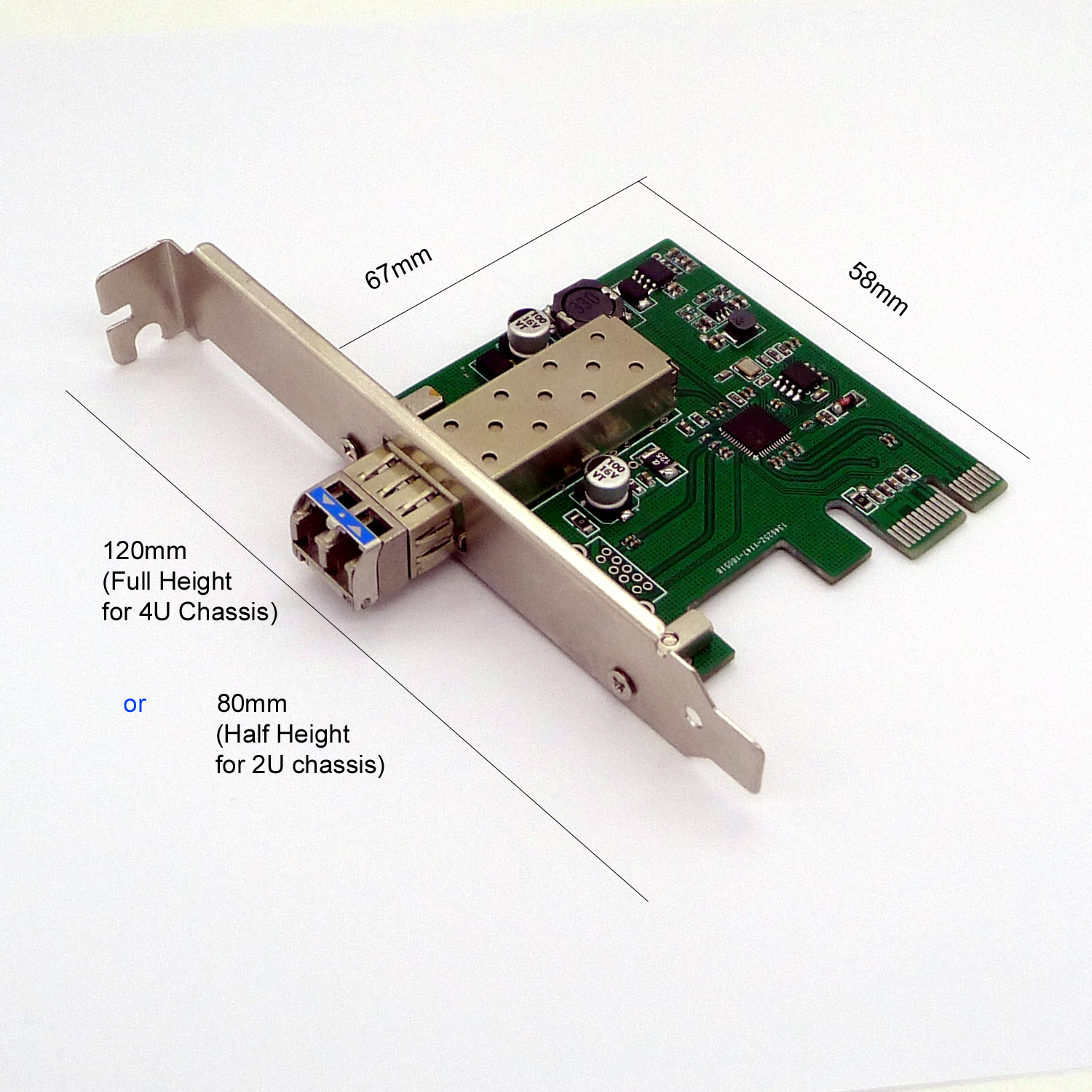

2) The Card at Host: 120 mm (for 4U chassis)x 67 mm x 58 mm; 80 mm (for 2U chassis)x 67 mm x 58 mm;
Case material:Aluminum
Color:Black
N.W.:0.5Kg
Power
Sender Voltage:5~12V DC
Sender power consumption: Less 5W
Receiver power consumption: Less 2W
Operation temperature:0-70℃
Storage temperature: -40° to +85° C
Humidity:0-95% (non-condensing)
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).
3.HD video surveillance system.
4.High - speed data acquisition system like FMC & TFM.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8.Kinect devices; USB 3.0 Wireless Adapter etc;
Diagram:
