Features:
Max extension distance 250 Meters (820FT) over optical fiber cable for U disc device; but For real-time transmission devices like Kinect devices, the Max distance is 150 Meters over Single-mode Fiber.

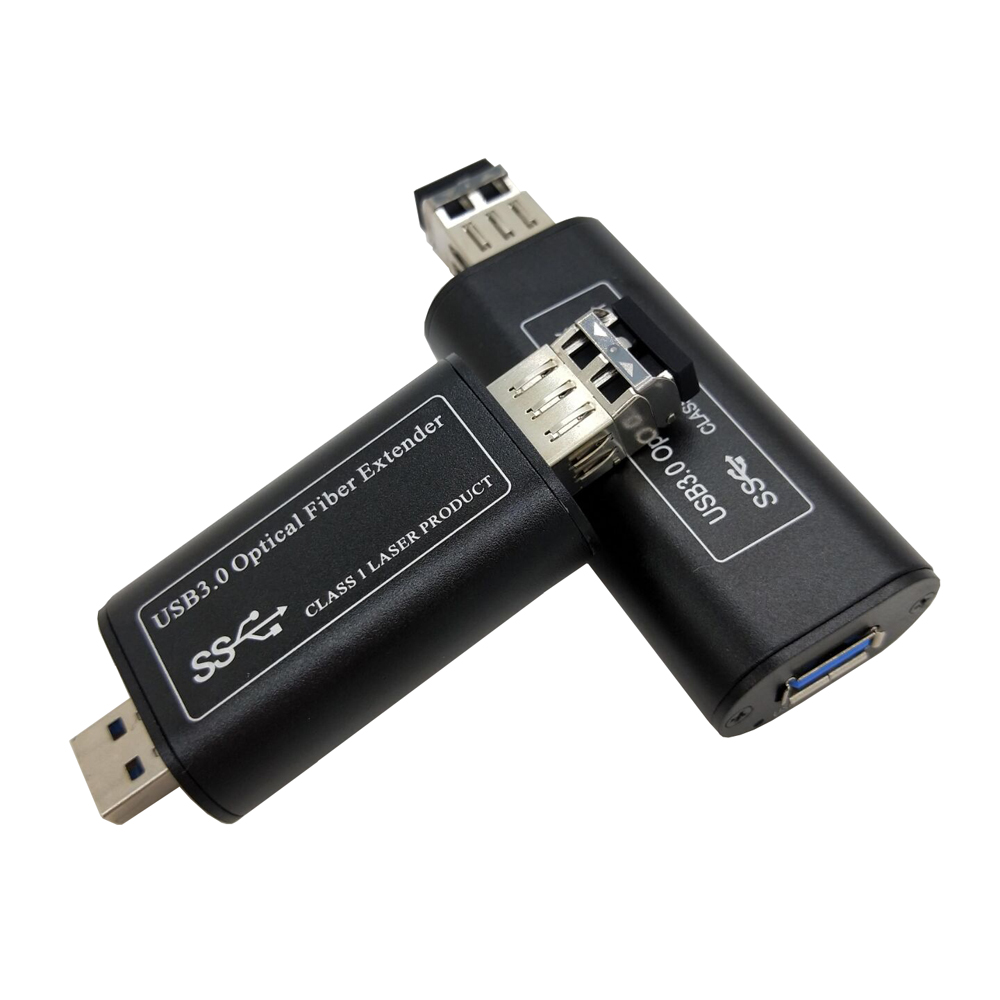

with the Mini Size, Looks like U disc; with LC fiber connector SFP module
Compatible with Windows 8, Windows 8.1, Windows 10, full version of the LINUX or UNIX operation systems; support plug and play
Supports USB 3.0 Super Speed up to 5 Gbps, USB 3.0 Type A Receptacle; pure hardware design, no driver needed.
Supports Full Duplex; Supports Kinect devices & Leap motion devices; USB 3.0 Wireless Adapter etc. But not backwards compatible with USB 2.0 and USB 1.1
Description:
BY-USB-912 includes a transmitter（client-side） and a receiver（host-side）, which can extend the Super speed USB 3.0 to a remote location over 1 or 2 core Single-mode optical fiber cable, Max distance 250 Meters.
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).
3.HD video surveillance system.
4.High - speed data acquisition system.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8.Kinect devices such as Xbox; USB 3.0 Wireless Adapter etc.
Note：
Not backwards compatible with USB 2.0 and USB 1.1
SPECS
Optical:
Fiber Connector: 2 x LC or 1 x LC (using Bi-directional SFP module, one LC port is blind even the image shows 2)
Wavelength: 1310nm
Support Fiber types: 9/125μm
Physical:
Size (L× W ×H): 1) Transmitter: 88.50 x 32.80 x 17.80 mm ; 2) Receiver: 84.3 x 33 x 17.8 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage: 5V DC
sender power consumption:<5W
receiver power consumption:<5W
Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)
Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power Adapter DC 5~12V with US/UK/AU plug for the transmitter, so the USB 3.0 devices can be powered by it as well.
4. 1 x Manual.
Drawing & Connection:
